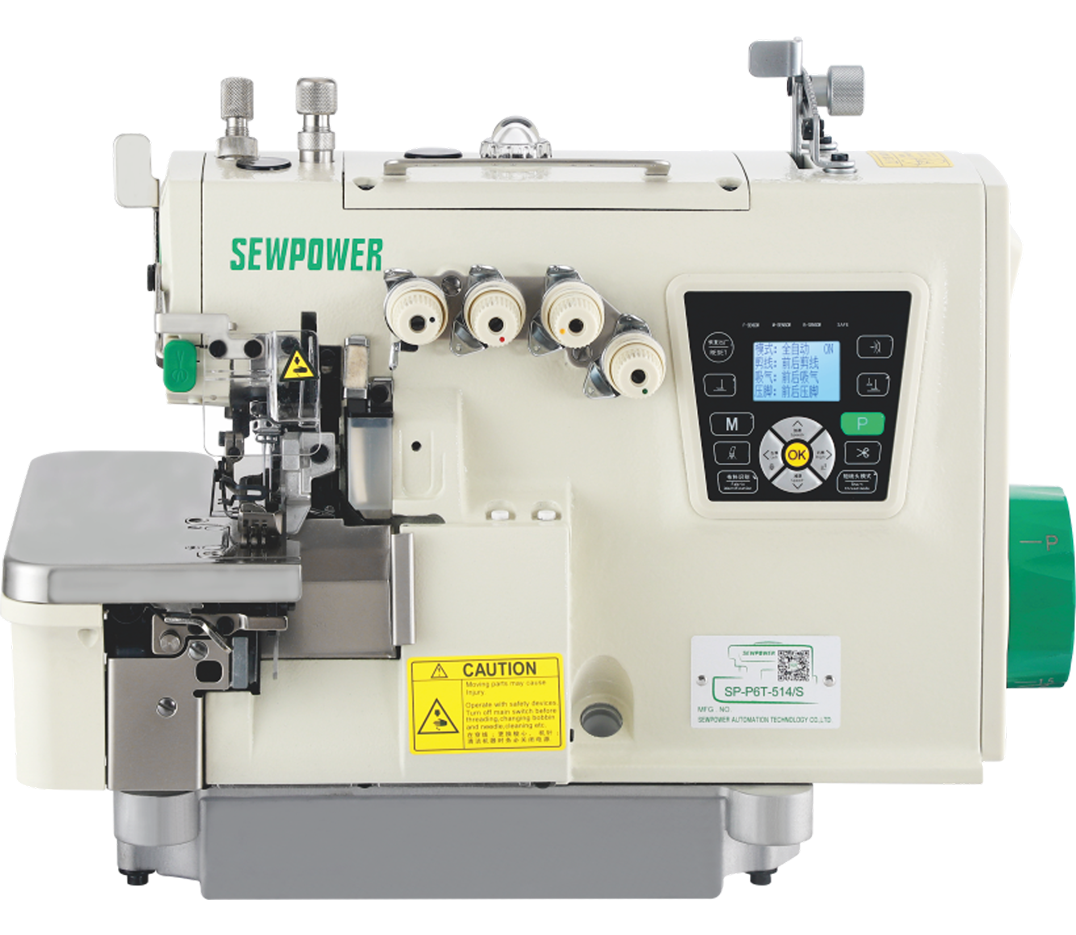

超高速上下差动步进电脑包缝机
Top and bottom feed stepping overlock machine
步进电机控制抬压脚和剪线，上下送布牙各自独立运作的新型送布机构;通过加大的差动比和优越的送布性能组合，可消除缝制当中易产生的错位现象;可以很容易的将不同的面料组合在一起使曲折滚边等难操作工序变得简单易行。
The series machine adopts upper and lower cloth feeding dog and independent operating feeding mechanism. Through the combination of increased differential ratio and superior cloth feeding performance, the phenomenon of dislocation easily produced in sewing can be eliminated. lt is easy to combine different fabrics together, making difficult operation procedures such as zigzac sewing and edge rolling easy to operate.
照明LED灯三档可调
LED lamp, 3 step lightness adjustment
三光眼感应，精准快速
3 lights sensor, accurate and fast
上差动牙调节器
Differential regulator
大功率电机提速快
big power motor , fastspeed up
广泛适用于服装，内衣，床上用品及薄形包装和皮革制品等各种面料的搭接缝、装饰缝。
Widely used in clothing, underwear, bedding, thin packaging and leather products and other kinds of fabrics lap joints, decorative seams.
| 机型Machine type | SP-P6T-514M24/S | SP-P6T-514M35/S |
机针Machine needle | DCx27 | DCx27 |
| 适用面料Applicable fabric | 厚料 | 厚料 |
| 针数Number of stitches | 2 | 2 |
| 线数Thread number | 4 | 5 |
| 抬压脚高度Foot lifter height | 8 | 7 |
| 线迹长度Stitch length | 2.5-8.5 | 2.5-7.5 |
| 线迹宽度Stitch width | 2x4 | 3x5 |
| 差动比Differential feed ratio | 0.8-1.4 | 0.7-2 |
最高转速Max speed | 5000 | 5000 |
| 包装尺寸Package size | 470x330x480 | 470x330x480 |
毛重/净重Gross/net weight | 42.1/36.2 | 42.1/36.2 |
