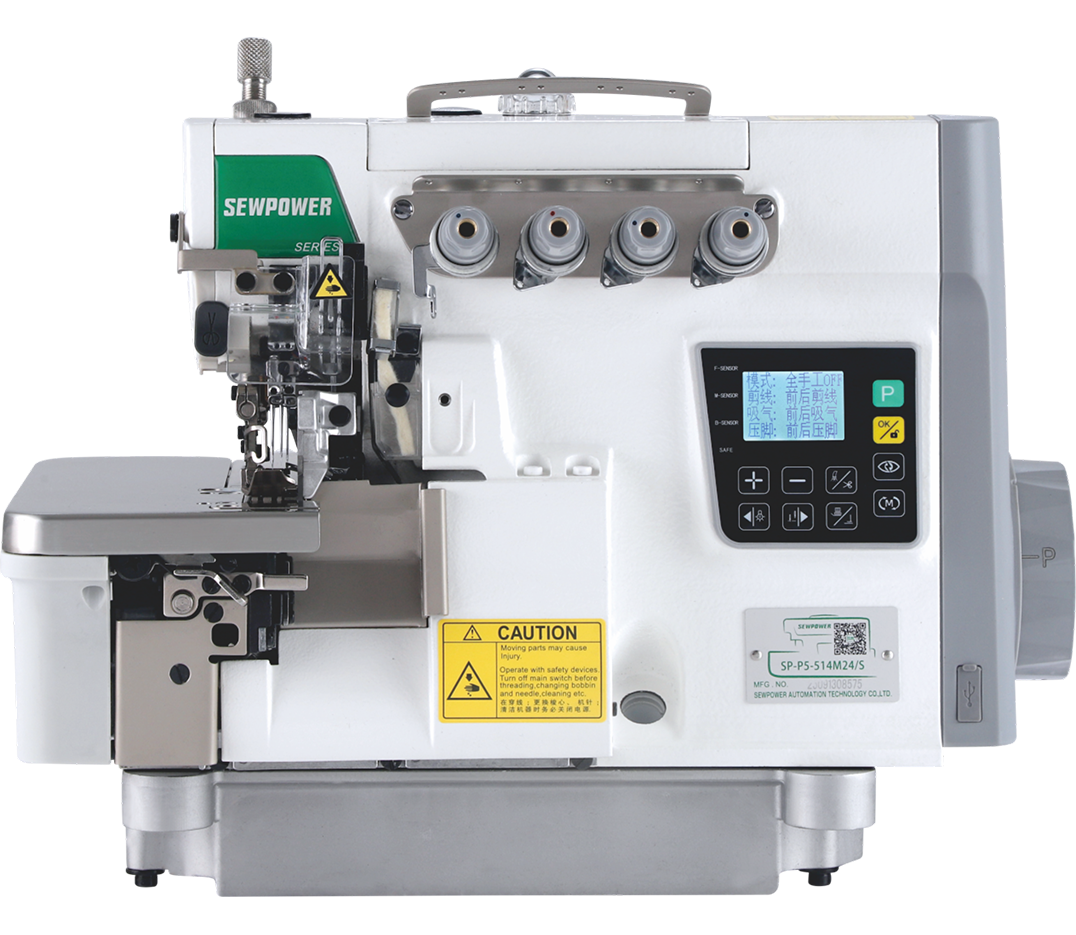

SP-P5-514M24/S

智能超高速全自动包缝机

SmartSuper High-speed Automatic Overock Sewing machine series

产品特点

本机为新一代智能超高速全自动包缝机,全新现代化的外观设计,美观大方,嵌入式操作面板,简便时尚。

采用内置式直驱电机,具有全人工、半自动、全自动、自由缝四种模式可供用户选择;具有电动抬压脚、电动剪线自动起步、自动缝纫、自动停车功能;

具有废料吸收式集尘装置;最高转速可达7000转/分钟。本机省电60%以上同时提高生产效率30%以上适用于针织内衣、薄中厚料服装及皮革制品等。

This machine is a new generation of intelligent super high speed automatic overlock sewing machine, brand new modem appearance design, beautiful and generous, embedded operating panel, simple and fashionable.

Built -in direct drive motor, with full manual, semi-automatic, automatic, free sewing, four modes are available for users to choose; lt has the functions of electric foot lifting, automatic starting, automatic sewing and automatic stopping.It has a waste absorbing dust collecting device; the maximum speed is 7000RPM. The machine saves more than 60% of electricity and improves production efficiency by more than 30%.lt is suitable for knitting underwear, thin, medium and thick materials clothing and leather products.



照明LED灯三档可调

LED lamp, 3 step lightness adjustment

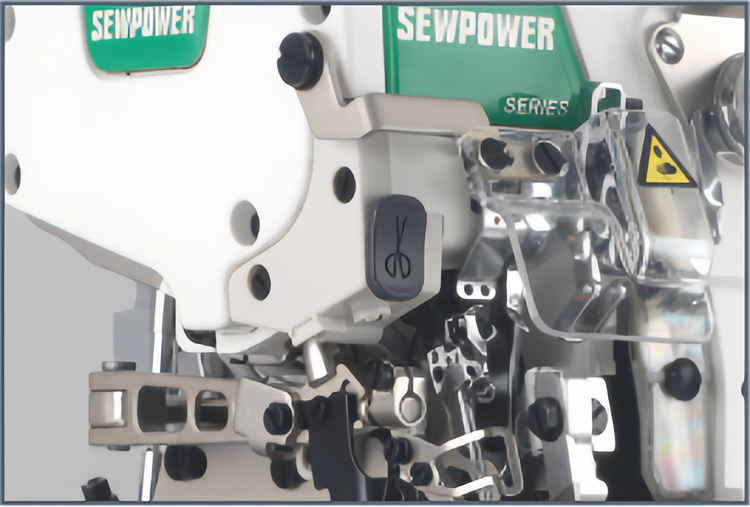

三光眼感应,精准快速

3 lights sensor, accurate and fast

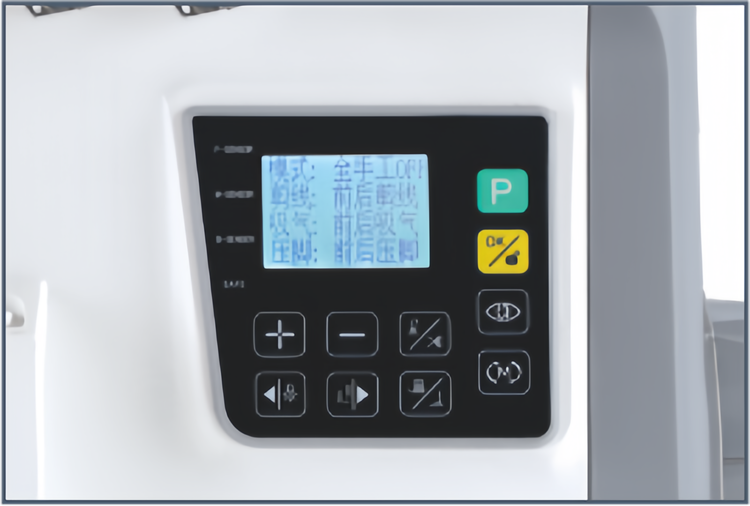

功能显示屏,直观易调

Functions panel, clear and easy to adjust

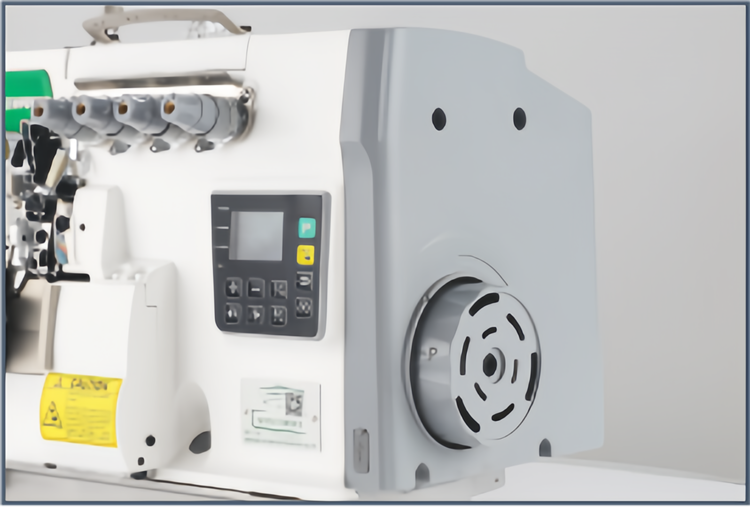

大功率电机提速快

big power motor , fast speed up



步进电机,控制剪线与抬压脚

stepping motor controls the thread trimming and auto lifter.

适用范围

适用于针织内衣、薄中厚料服装及皮革制品等。

lt is suitable for knitting underwear, thin, medium and thick materials clothing and leather products.





设备参数


SP-P5-514M24-3SP-P5-514M24-4SP-P5-514M24-5


DCx27DCx27DCx27


122


666


345


0.6-3.80.6-3.80.6-3.8


444


0.7-20.7-20.7-2


700070007000


470x330x480470x330x480470x330x480


40/3240/3240/32
