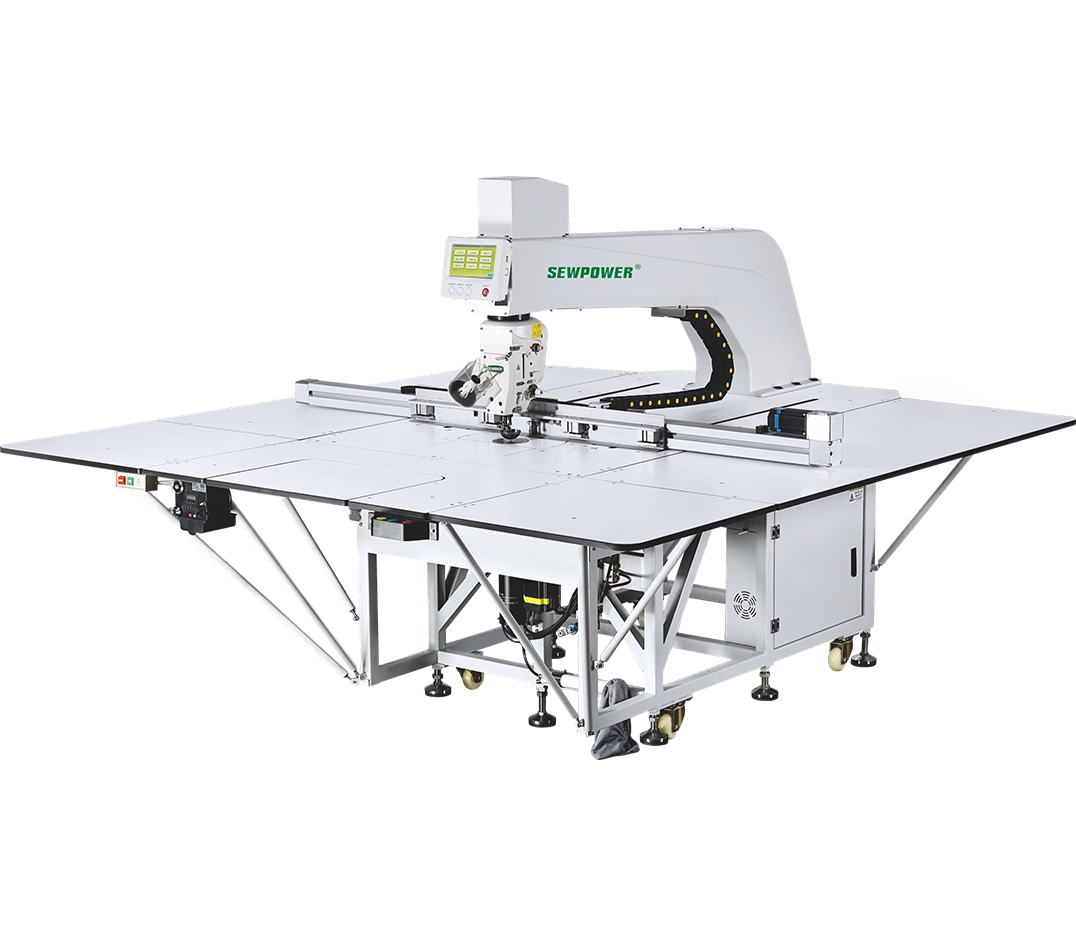

无鸟巢旋转模板机
Anti Bird-Nest Template Machine
超高速模板机，速度更快，振动更小，声音更轻，具有可搭载无线通讯功能,配置无线路由器,能进行远程软件升级花样程序传输和参数设置。可选配定制物联网功能,可以有线或无线的方式与生产管理系统进行远程数据交互。可直接在触摸屏上进行图案的采集输入和修改。
Ultra-High Speed Template Machine, Faster Speed, Reduced Vibration, Quieter Operation, Wireless Communication Ready includes Wi-fi router for remote software upgrades, pattern transfers, and parameter settings.Jotional loT Customization Enables wired or wireless remote data exchange with production management systems.Direct Pattern lmport & Editing via Touchscreen Streamlines desian workflow.
机头360度旋转缝
360 degree rotary sewing

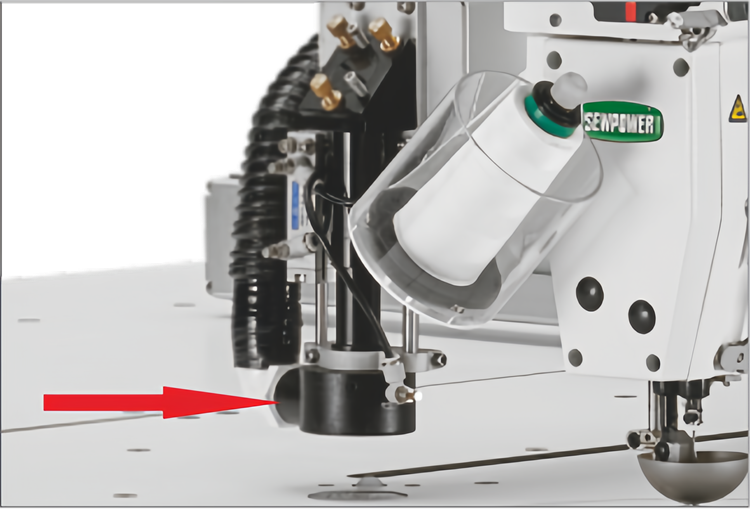

激光切割装置(选配)
Laser cutting device (optional)

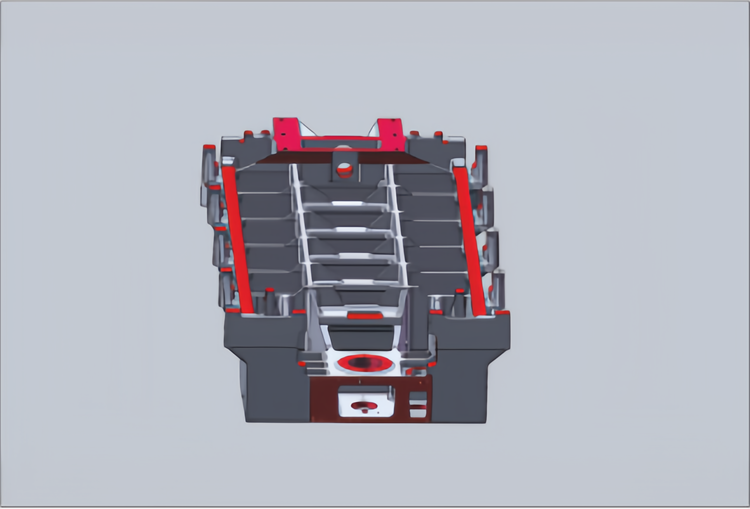

一体铸造大底座
Integrated casting large base

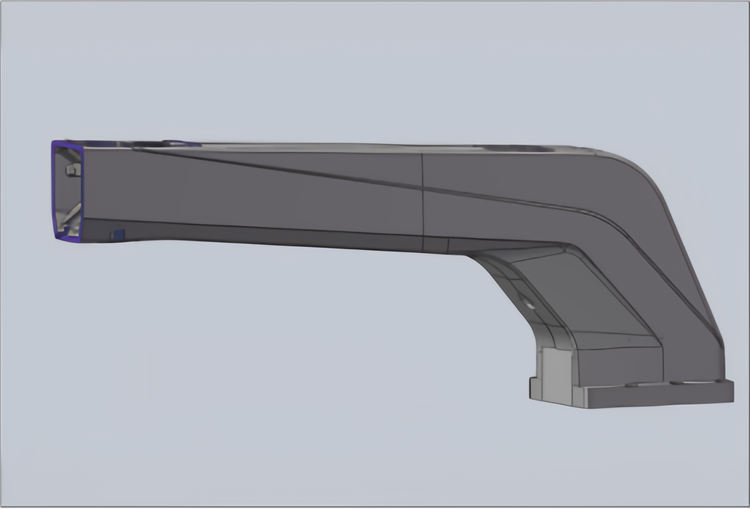

一体铸造机臂
Integrated casting machine arm
| 机型Machine type | SP-N95130W | SP-N95150W | SP-N95160W | SP-N95180W | SP-N95200W | SP-N95240W |
| 缝制范围Sewing Range | 900X1300 | 900X1500 | 900X1600 | 900X1800 | 900X2000 | 900X2400 |
| 最高转速Max Speed | 3800 | 3800 | 3800 | 3800 | 3800 | 3800 |
| 针距Needle gauge | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 |
机针 Machine needl | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# |
旋梭Hook | 2倍梭 | 2倍梭 | 2倍梭 | 2倍梭 | 2倍梭 | 2倍梭 |
气压Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
抬压脚高度 | 20 | 20 | 20 | 20 | 20 | 20 |
Y送料方式 | 单丝杆 | 单丝杆 | 单丝杆 | 单丝杆 | 单丝杆 | 单丝杆 |
X送料方式 | 丝杆、同步带 | 丝杆、同步带 | 丝杆、同步带 | 丝杆、同步带 | 丝杆、同步带 | 丝杆、同步带 |
台板展开尺寸 | 2400X2200 | 2400X3200 | 2400X3200 | 2400X3700 | 2400X4100 | 2400X4800 |
包装尺寸 Package siz | 1960X1150X1740加130W激光长2180 | 1960X1150X1740加130W激光长2180 | 1960X1150X1740加130W激光长2180 | 1960X1150X1740加130W激光长2180 | 1960X1150X1740加130W激光长2180 | 1960X1150X1740加130W激光长2180 |
毛重/净争重 | 575 | 596 | 602 | 619 | 644 | 673 |
