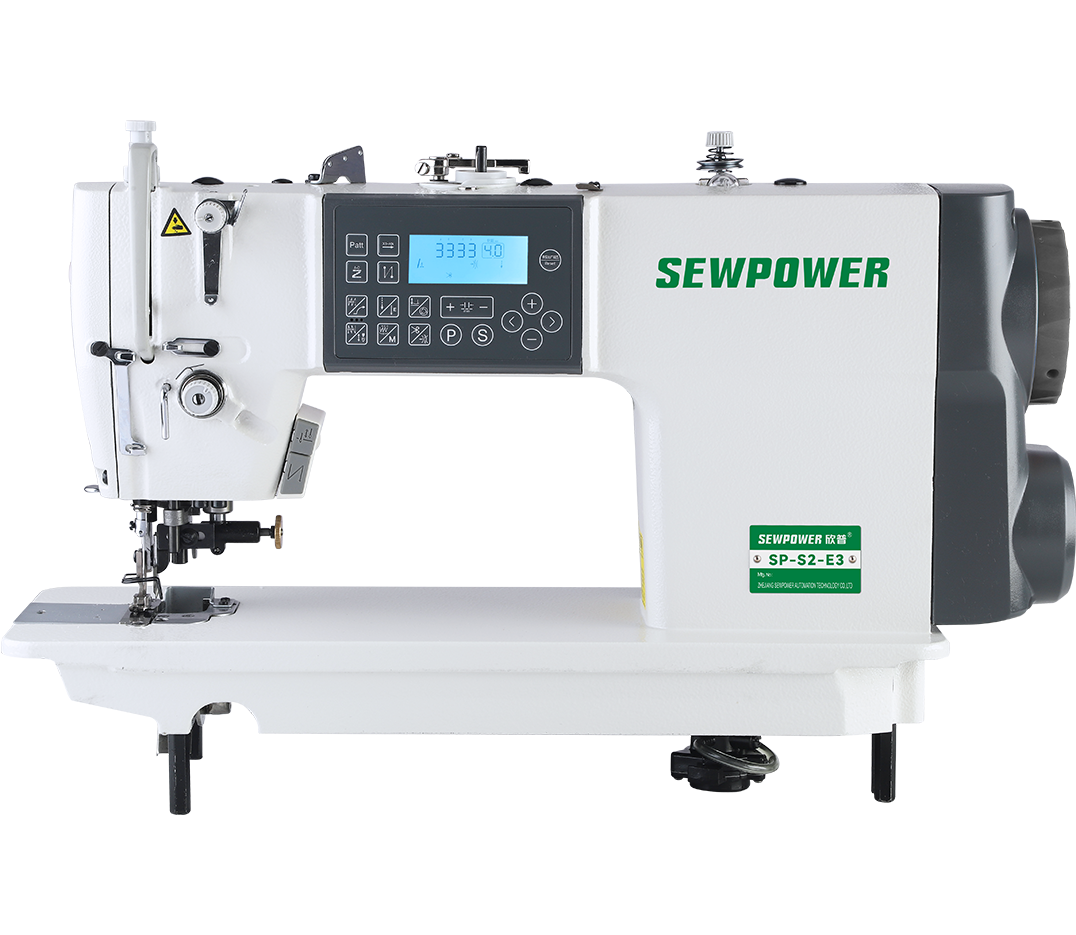

SP-S2-E3

步进高速带刀平缝机

Computer Direct Drive Lockstitch Machine with Edge Cutter

产品特点


步进控制针距,采用内置式伺服马达,实现了机器的快速启动和制动的精确度;大幅度降低了噪音和振动,并降低了能耗,与普通的驱动装置相比,电量减少35%以上,适用于缝制各类衬衫、西服或类似服装,特别是其衣领、前襟等部位,高速缝制时倒顺送料针距能保持完全一致,侧切刀装置使缝纫和修刀工序一次完成,工作效率提高。

With bult-in direct drive servo motor to achieve the accuracy of the machine's rapid start-up and braking; a significant reduction in noise and vibration, and reduce energy consumption, compared with conventional drive unit, battery depletion of 35% or more, suitable for sewing various shirts, suits or similar garments, especially its collar, breast and other parts, inverted send high-speed sewing material pitch to be completely consistent, side cutter device sewing and knife trimming procedures in one time eficiency.






设备参数
机型Machine typeSP-S2-E3
机针Machine needleDBx1
针距Needle gauge0-5
抬压脚高度Foot lifter height5.5-13
切刀针位组Needle gauges1/8,1/4,3/16

自动剪线Auto thread trimming

大旋梭Big hook——
小旋梭Small hook

最高转速(rp.m) Max speed

4500
包装尺寸Package size660x270x550
毛重/净重Gross/net weight42/37
