SP-S2-E5

步进电脑高速带刀平缝机

Computer Direct Drive Lockstitch Machine with Edge Cutter

产品特点


采用内置式伺服电机,确保了快速启动和制动的精确度。步进电机控制调针距及倒回缝,针距更准确,切布整齐,可配多种针位,适合衬衣,轻薄羽绒服等服饰裁边。

一键切换常规缝纫,采用宽漏斗口,下料顺,步进调针距及倒缝,针距更准。

The built-in servo motor ensures fast starting and braking accuracy. Stepper motor control stitch length and reverse sewing, stitch length is more accurate.cut cloth neatly, can be matched with a variety of needle gauges, suitable for shirts, light down jackets and other clothing cutting.

One key switch conventional sewing, using a wide funnel mouth, smooth discharging, stepper motor adjustment stitch length and reverse sewing needle stitch more accurate



一键切换常规缝纫

One key switch conventional sewing

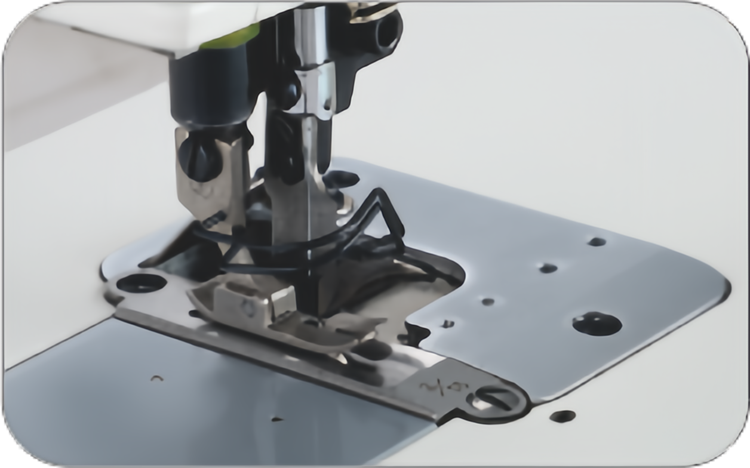

采用宽漏斗口,下料顺

Using wide funnel mouth,the fabrics go smoothly

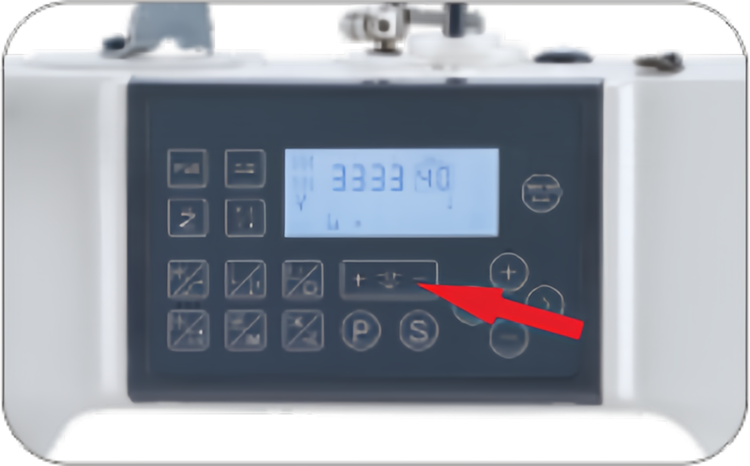

步进调针距及倒缝,针距更准

stepping motor to adjust the needle distance and reverse sewing, the needle distance is more accurate

设备参数
机型Machine typeSP-S2-E5
机针Machine needleDBx1
针距Needle gauge0-5
抬压脚高度Foot lifter height5.5-13
切刀针位组Needle gauges1/8,1/4,3/16

自动剪线Auto thread trimming

大旋梭Big hook——
小旋梭Small hook

最高转速(rp.m) Max speed

4500
包装尺寸Package size660x270x550
毛重/净重Gross/net weight42/37
