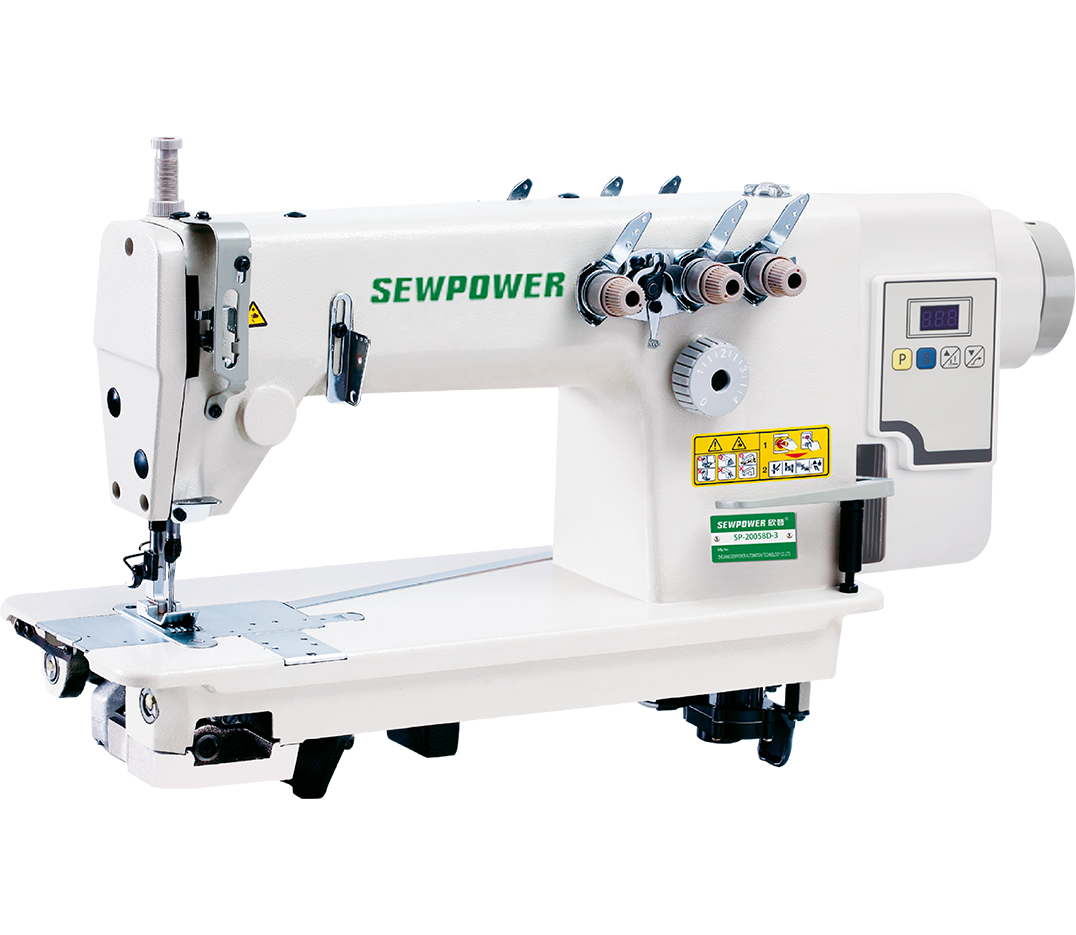

直驱高速链缝机系列
Direct Drive High Speed Chain Stitch Sewing Machine Series

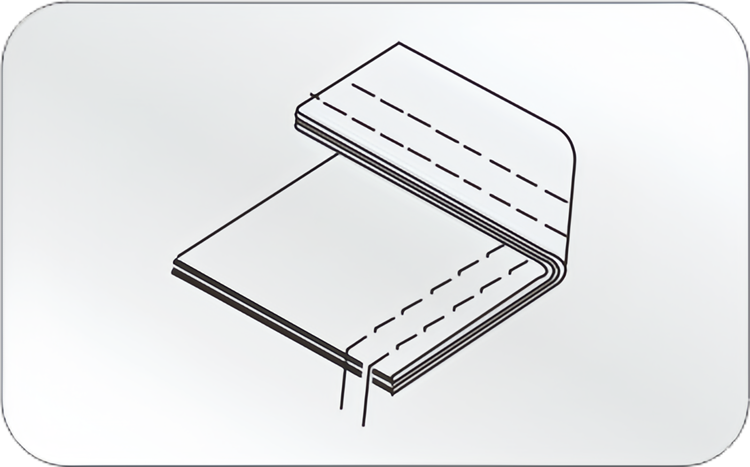

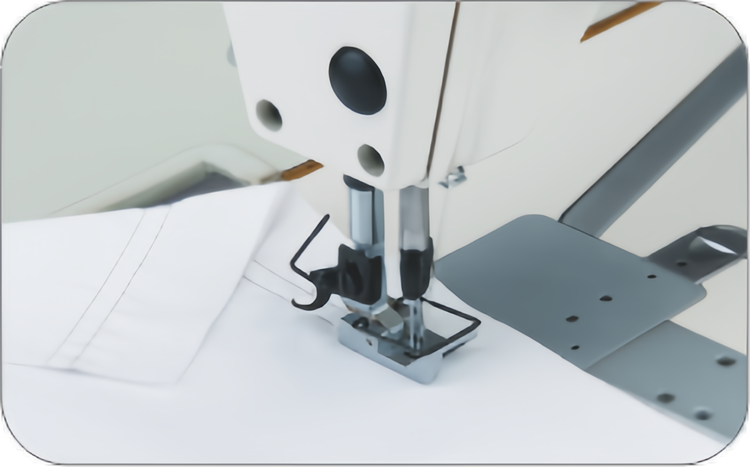

本机操作空间大,直驱伺服装置使缝制速度可以自由调节,采用针杆挑线、弯针勾线,形成三针线迹,线迹美观挺直,富有弹性,适用于不同缝线和面料的缝纫作业,如中平布、卡其布和牛仔布料等,并配备各种规格的尺寸针位产品可供选择,从丝绸到极厚的牛仔物料;内置、外置拖轮机构,能满足不同客户的需求。
The machine operalion space is large ,the direct drive servo device can make the sewing speed free to adjust, adopt neede bar to take up thread and looper to hook thread, form the three needle stitch ,the stitch is beautiful straight and elastic. This machine is suitable for different suture and the fabric of the sewing work , such as plain cloth, Khaki and denim fabric, etc. It is also equipped with a variety of sizes or needle products to choose, from silk to very thick cowboy materials ; built-in , extermal tugs , to meet different customers' demands.


| 机型Machine type | SP-20058D-1 | SP-20058D-2 | SP-20058D-2-PL | SP-20058D-3(品) | SP-20058D-3(斜) | SP-20058D-3-PL |
| 机针Machine needle | TVx7 | TVx7 | TVx7 | TVx7 | TVx7 | TVx7 |
| 抬压脚高度Foot lifter height | 5.5/10 | 5.5/10 | 5.5/10 | 5.5/10 | 5.5/10 | 5.5/10 |
针距 Needle gauge | 0-4 | 0-4 | 0-4 | 0-4 | 0-4 | 0-4 |
| 针数Number of stitches | 1 | 2 | 2 | 3 | 3 | 3 |
| 针位needle bar stoke | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 |
厚料 Thick fabric | ★ | ★ | ★ | ★ | ★ | ★ |
中厚料 Medium fabrics | ★ | ★ | ★ | ★ | ★ | ★ |
| 薄料Thin fabrics | ★ | ★ | ★ | ★ | ★ | ★ |
| 最高转速(rp.m)Max speed | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| 包装尺寸Package size | 66.5x30x56 | 66.5x30x56 | 66.5x30x56 | 66.5x30x56 | 66.5x30x56 | 66.5x30x56 |
| 毛重/净重Gross/net weight | 43/35 | 43/35 | 45/37 | 43/35 | 43/35 | 45/37 |
