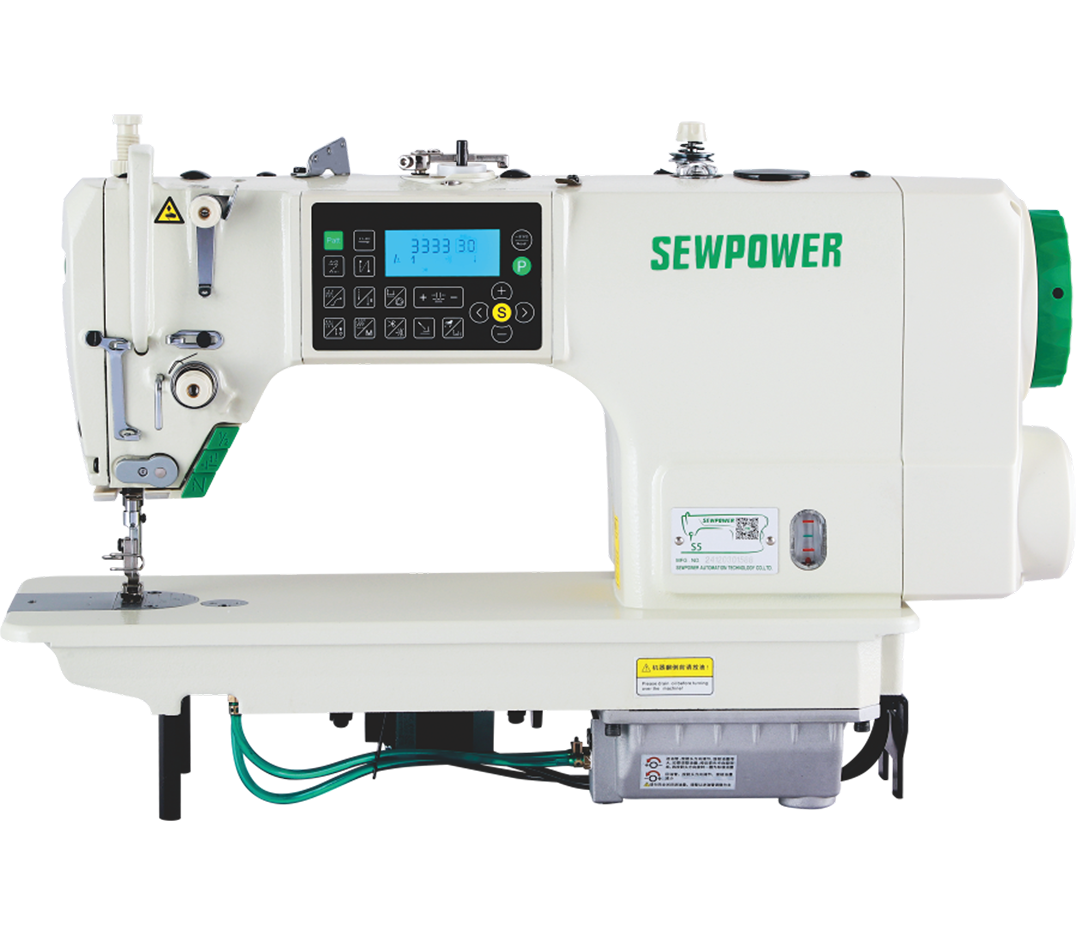

SP-S5

双步进电脑平缝机

Double step motor computer lockstitch sewing machine

产品特点

采用双独立步进电机马达驱动剪线与抬压脚,电子调针距,最小值为0.1mm,以齿轮传动,声音更轻速度更快,提高工作效率。

Adopt double independent stepper motor to drive thread trimming and presser foot lifting, electronic adiustment of stitch distance, the minimum value is 0.1 mm, needle bar plated DLC coating more weal-resistant, with synchronous belt instead of gear transmission, lighter sound, faster speed, improve work efficiency.

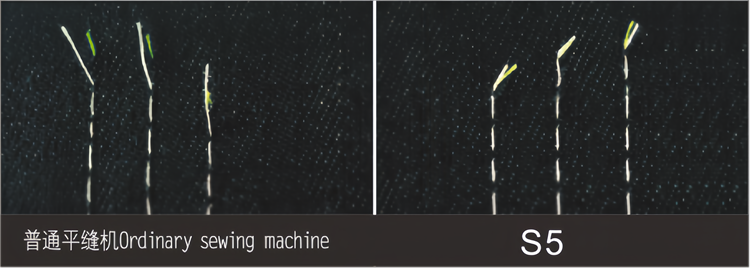

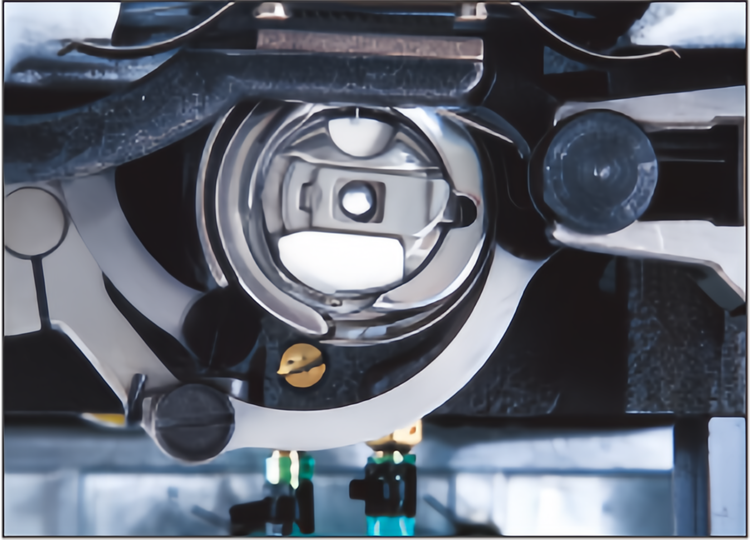

可选配:(双圆刀的新切线机构,(短线头、减少线头堆积现象)

Optional:Double round knives cutting mechanism, effectively reducing process of dealing with the thread head (shorter thread head, less thread piling)



双步进电机,更安静平稳

Double stepper motor for quieter and smoother

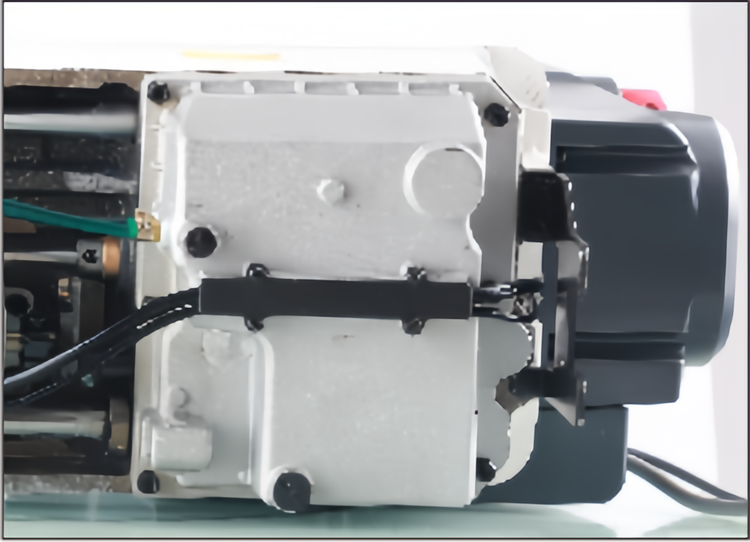

密封油盘

Sealed oil pan

适用范围


西装 Suit



T恤 T-shirt



牛仔 Denim



童装   Children's clothing



演出服  Performance clothing



羽绒服  Down jacket

设备参数
机型Machine typeSP-S5SP-S5-H

机针Machine needle

DBx1DPx5

针距 Needle gauge

0-50-7

抬压脚高度

Foot lifter height

5.5-135.5-13

厚料

Thick fabrics

——

中厚料

Medium fabrics

——
薄料Thin fabrics——

自动剪线

Auto thread trimming

大旋梭Big hook————
小旋梭Small hook
最高转速(rp.m)Max speed50004500
包装尺寸Package size620x280x550620x280x550
毛重/净重Gross/net weight44/3844/38
