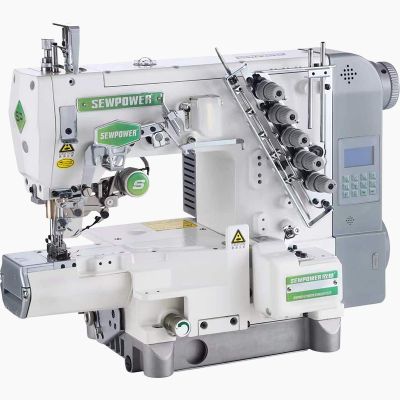

Stepper motor integrated with touch screen automatic thread-trimming horizontal cylinder interlock sewing machine
步进一体触摸屏自动剪线横筒式绷缝机
Patent Number:2017212028153
Patent Number:2017304450878
Patent Number:2017208664692
Step by Step Integrated Sewing Machine
Replacing traditional lifting feet and wire cutting electromagnetic structures (or pneumatic structures), with a longer service life!
The new stepper motor has a more stable structure, low noise, more stable tool output, and more precise stroke!
Stepper motor
Hidden stepping motor structure, morenovel appearance and more reasonablestructure!
High speed high-power motor
SP-780 maximum speed 6000 rpm, regular speed 4500 rpm
Versatile model
Only change the gauge set & attachment which could use the binder of flat-bed machine to offer standard tape attaching. “Covering, Hemming & binding”, Three basic functions in one m/c.
Covering
Bottom hemming
Binding
Bottom line tangent group (Patented design)
The thread trimmer good at cutting and easy maintenance. The special design under trimmer plunger, to micro-adjust the trip of blade precisely when it cutting.
Wire cutting device (Patented design)
Precise Patent design, electrical threadtrimmer, easy to adjust from differentangles, can catch, cut and clamp thethread smoothly together with stableperformance.
Sealing function (Patented design)
Front and back bartack sewingfunctions can be addedaccording to customer needs
Differential structure adjustment (Patented design)
Independent Differentialstructure ---moreconvenient Adijustment
Applied to POLO shirt rolled hem cuffs, rolled pants legs
780Lift the high-voltage foot
780 787 Step by step convenient knife function upgrade
Bone turnover device
| Maximum Sewing Speed | 5500rpm |
| Stitch Length | 1.45mm |
| Differential Feed Ratio | 1：0.44 - 1：2 |
| Foot Lift Height | 7.0mm |
| Needle Spacing | 5.6MM、6.4MM |
| Motor | Direct Drive |
| Model | Gross weight/kg | Net weight/kg | Carton dimensions/CM | Volume/CBM | Platform/kg | Platform size | Platform volume/CBM |
| 787EST/EWT | 55.2 | 45.3 | 73.5*40.5*63 | 0.188 | 26 | 123.5*59*10 | 0.072 |
| 787AST/AWT | 57 | 45.5 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| L200 | 65.5 | 48 | 0.188 | 24.5 | 123.5*59*10 | 0.072 | |
| N600AST | 57.5 | 47.5 | 0.188 | 26.5 | 123.5*59*10 | 0.072 | |
| N600EST | 60 | 50 | 0.188 | 24.5 | 123.5*59*10 | 0.072 | |
| R600AST | 58.5 | 49 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| RP | 64 | 52.5 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| 720EST/EST | 59 | 47.5 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| 720AST/AWT | 55 | 43.5 | 0.188 | 26 | 123.5*59*10 | 0.072 |
