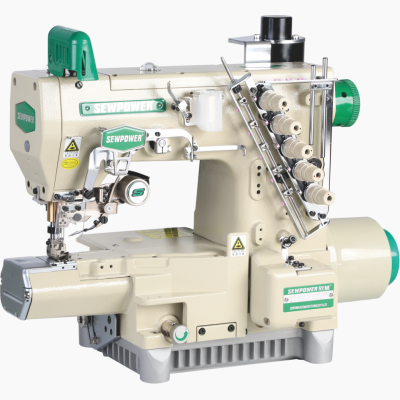

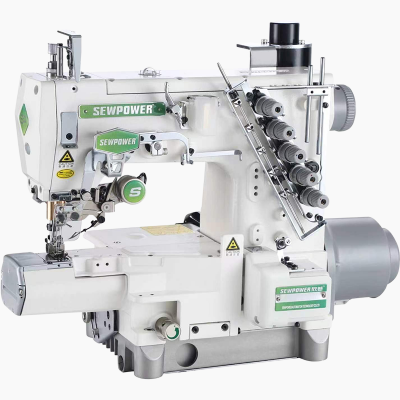

Servo motor cylinder bed interlock sewingmachine with automatic trimmer
伺服电机自动剪线横筒式绷缝机
Stable and precise tangent group (Patented design)
The patent structure provides stable cutting andeasy maintenance, Newly designed the blade forbottom thread and top thread in order to controthe broken stitches.
Separate vertical lifting foot assembly (Patented design)
it adopts independent&vertical type presser foot-lifter solenoid; low vibration and low noise. The magnetical type solenoid make space to be very small and more sensitive response
Wire cutting device (Patented design)
Precise Patent design, electrical thread trimmer, easy to adjust from different angles, can catch, cut and clamp the thread smoothly together with stable performance
Rolling hem
Pressed bone
Roll up pants legs
Applicable to medium-heavy duty fabric for general seaming and hemming. For example, all kinds of underwear, sportswear for covering and hemming…etc
| Maximum Sewing Speed | 5500rpm |
| Stitch Length | 1.4-4.5mm |
| Differential Feed Ratio | 1：0.7 - 1：2 |
| Foot Lift Height | 7.0mm |
| Needle Spacing | 5.6MM、6.4MM |
| Air Thread Trimming | Yes |
| Pneumatic Presser Foot Lift | Yes |
| With thread wiper device | Yes |
| Model | 787EST/EWT |
| Gross Weight /kg | 55.2 |
| Net Weight /kg | 45.3 |
| Carton Dimensions/CM | 73.5*40.5*63 |
| Volume/CBM | 0.188 |
| Table Top/kg | 26 |
| Table Top Dimensions | 123.5*59*10 |
| Table size/CBM | 0.072 |
