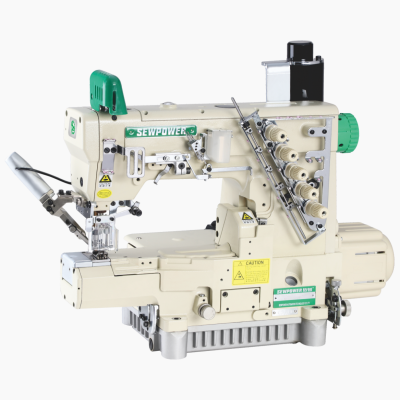

Super high-speed automatic thread trimming horizontal cylinder interlock sewing machine
超高速自动剪线横筒式绷缝机
Two-stage differential
Two-step differential feed ratio more suitable for different kinds offabrics
Needle rod travel adjustable
Needle bar stroke convertible to 31 and 33mm is applicable to various production.
Mid mounted wiring cam
The middle-mounted threading cam is simple and easy to adjust for threading, the stitches are beautiful, and the maintenance is more convenient;
Oil blocking function
The imported material sealing ring is used to effectively avoid oil leakage of the needle bar and the lower looper spindle;
Oil pan cooling ventilation hole (Patented design)
The patented oil pan air outlet can dissipate the heat of the oil pan through the motor fan during operation, thereby reducing the temperature of the whole machine, making the machine run more stably and have a longer life;
Three in one function
“3 in 1 function” (Stitch covering, hemming and tape binding)
Model |
|
|
|
|
|
|
| Device |
| SP-2700-CB240 | 2 | 3 | 1.4-4.5 | 4.0 | 1:0.6-1:2.1 | 7.0 | 6500 | EST EWT AST AWT |
| SP-2700-CB248 | 2 | 3 | 4.8 | |||||
| SP-2700-CB348 | 3 | 5 | 4.8 | |||||
| SP-2700-CB356 | 3 | 5 | 5.6 | |||||
| SP-2700-CB364 | 3 | 5 | 6.4 | |||||
| SP-2700-CB456 | 4 | 6 | 5.6 |
| Model | Gross weight/kg | Net weight/kg | Carton dimensions/CM | Volume/CBM | Table Top/kg | Table Top size | Table Top volume/CBM |
| 787EST/EWT | 55.2 | 45.3 | 73.5*40.5*63 | 0.188 | 26 | 123.5*59*10 | 0.072 |
| 787AST/AWT | 57 | 45.5 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| L200 | 65.5 | 48 | 0.188 | 24.5 | 123.5*59*10 | 0.072 | |
| N600AST | 57.5 | 47.5 | 0.188 | 26.5 | 123.5*59*10 | 0.072 | |
| N600EST | 60 | 50 | 0.188 | 24.5 | 123.5*59*10 | 0.072 | |
| R600AST | 58.5 | 49 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| RP | 64 | 52.5 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| 720EST/EST | 59 | 47.5 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| 720AST/AWT | 55 | 43.5 | 0.188 | 26 | 123.5*59*10 | 0.072 |
