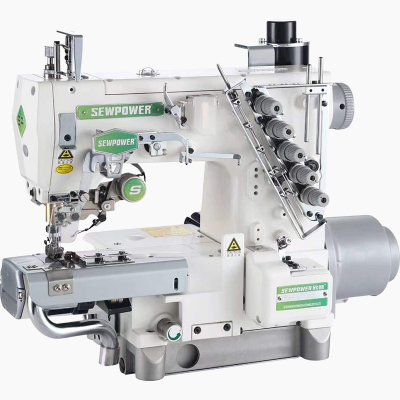

Servo motor cylinder bed interlock sewing machine with automatic trimmer and left hand side fabric cutter
伺服电机自动剪线横筒式绷缝机(附左切刀功能)
Patent design suction cloth chip tube group
The well-designed copper pipe suction device is sturdy, durable and compact.
Patent design Needle board blowing device Patent Number: 201821406371X
The well-designed needle plate blowing device is designed to sew a soft stretch fabric, first flatten the fabric, and then cut it to ensure that the fabric is trimmed and the sewing effect is better.
Carefully improved outer cover assembly
The well-designed outer cover is improved, the folding hem component is improved, and the arc is streamlined, which is convenient and quick to operate
Rolling hem
Roll up pants legs
All new design (left side cutter) to cut the fabric edge, easy operation and more stable performance. it is suitable for all kinds of knitwear, T-shirts bottom hemminng (the left side cutter cut the extra fabric edge first, then hem the bottom edge)
Pneumatic wire cutting
| Maximum Sewing Speed | 5500 rpm |
| Stitch Length | 1.4-4.5MM |
| Differential Feed Ratio | 1：0.7 - 1：2 |
| Foot Lift Height | 7MM |
| Needle Spacing | 5.6MM/6.4MM |
| Direct Drive | Yes |
| With Left-side Cutter | Yes |
| Pneumatic Presser Foot Lift | Yes |
| With Thread Wiper | Yes |
| Model | Gross weight/kg | Net weight/kg | Carton dimensions/CM | Volume/CBM | Table Top/kg | Table Top size | Table Top volume/CBM |
| 787EST/EWT | 55.2 | 45.3 | 73.5*40.5*63 | 0.188 | 26 | 123.5*59*10 | 0.072 |
| 787AST/AWT | 57 | 45.5 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| L200 | 65.5 | 48 | 0.188 | 24.5 | 123.5*59*10 | 0.072 | |
| N600AST | 57.5 | 47.5 | 0.188 | 26.5 | 123.5*59*10 | 0.072 | |
| N600EST | 60 | 50 | 0.188 | 24.5 | 123.5*59*10 | 0.072 | |
| R600AST | 58.5 | 49 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| RP | 64 | 52.5 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| 720EST/EST | 59 | 47.5 | 0.188 | 26 | 123.5*59*10 | 0.072 | |
| 720AST/AWT | 55 | 43.5 | 0.188 | 26 | 123.5*59*10 | 0.072 |
