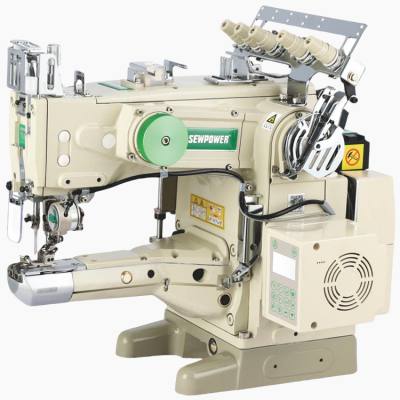

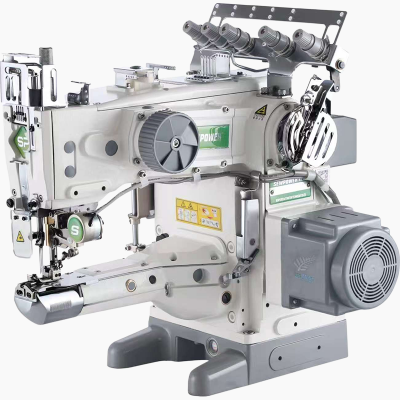

Stepping motor integrated vertical type auto-trimmer interlock sewing machine with Mini needle plate
步进一体迷你针板自动剪线纵筒式绷缝机
Step by Step Integrated Sewing Machine
Replacing traditional lifting feet and wire cutting electromagnetic structures (or pneumatic structures), with a longer service life!
The new stepper motor has a more stable structure, low noise, more stable tool output, and more precise stroke!
Versatile model

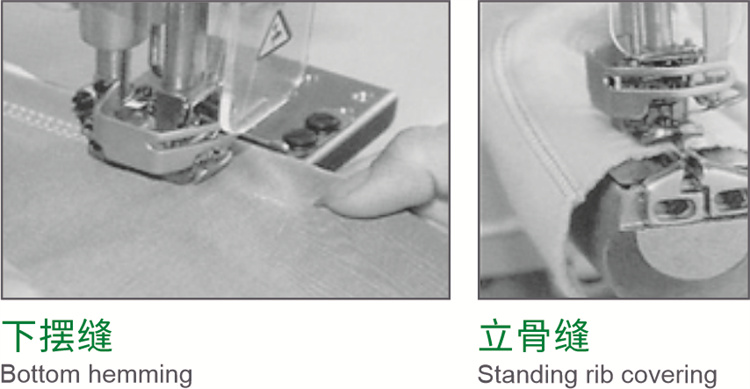

The original plaform horn can be used by replacing the guide tool specification group and adding auxiiary acessories to produce standard hemming sewing. An allin-one model with multiple functions such as Covering, bottom heming, and binding etc.

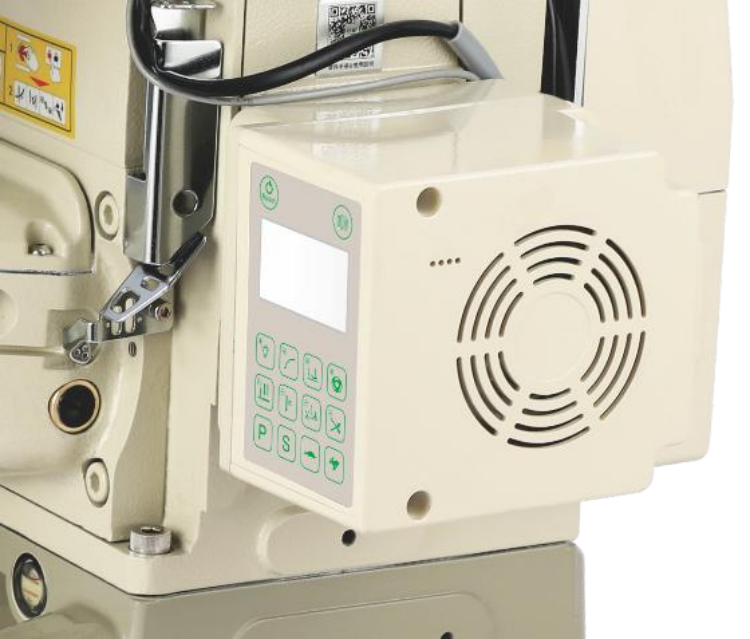

Integrated motor control (Patented design)
Integrated motor and electronic control,exquisite appearance,beautiful atmosphere and convenient operation.

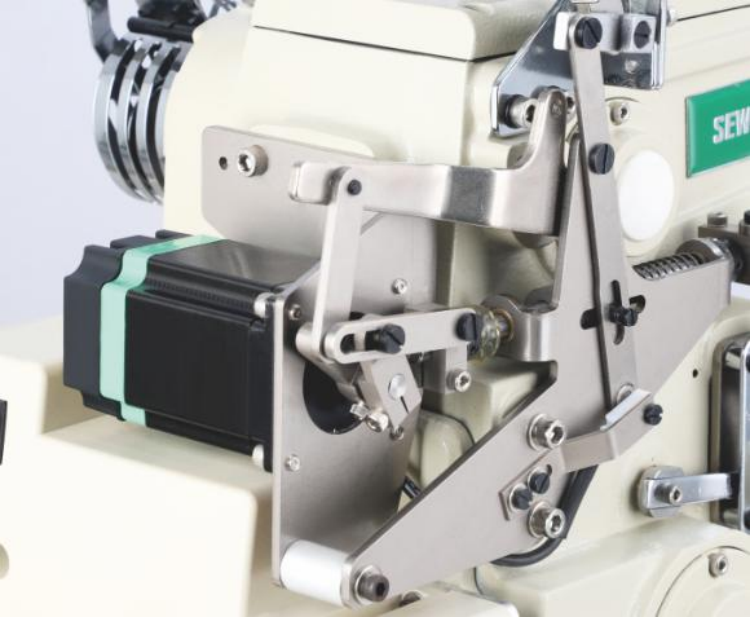

Stepper motor wire cutting structure (Patented design)
Stepper motor thread trimming and lifting foot, replacing the traditional liftingfoot and lower thread trimming electromagnet structure (or pneumatic structure),the service life is longer! The new stepper motor structure is more stable, lownoise, more stable knife, and longer stroke Precise!
Mini needle board structure (Patented design)
Mini needle plate, smaller size, more convenient to sewing small-caliber clothes.
This machine is suitable for some special process in garment making, interlocking and cover sewing of small caliber parts, such as collar, sleeve, elastic lace of all kinds of garment, specially for knitting ware, sports ware, swimming suit and all kinds of leisure clothes, jacket etc.applicable to sewing of cotton wool, cloth and knitting wear for garment factory.
On site video

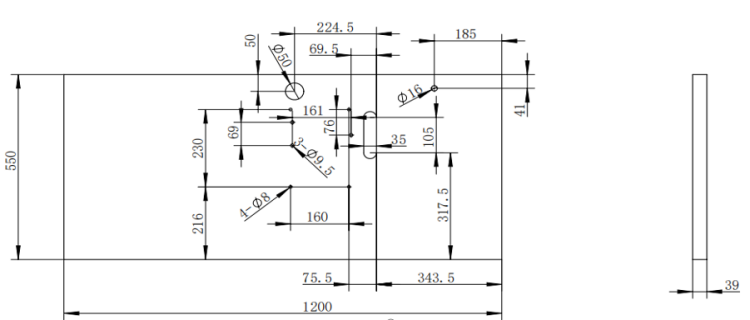

Ordinary tabletop
Sunken tabletop
| Maximum Sewing Speed | Up to 5500 revolutions per minute |
| Model | Direct drive |
| Differential Feed Ratio | 1:0.8-1:2 |
| Needle Spacing | 5.6MM，6. 4MM |
| Stitch length | 1.2MM-4MM |
| Foot Lift Height | 9MM |
| Tube length | 260MM |
| Scope of Application | Suitable for sewing sleeves, pants legs, etc |
| Air Thread Trimming | YES |
| Pneumatic Presser Foot Lift | YES |
| With Thread Wiper | YES |
| Stepper motor touch all-in-one machine | YES |
| Model | Gross weight/kg | Net weight/kg | Carton dimensions/CM | Volume/CBM | Platform/kg | Platform size | Platform volume/CBM |
| 1500普通 | 51 | 40 | 58*50*65 | 0.189 | 26 | 123.5*59*10 | 0.072 |
| 1500-DS | 54.2 | 40.2 | 0.189 | 26 | 123.5*59*10 | 0.072 | |
| 1500EST/EWT | 63.5 | 52.5 | 0.189 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500AST/AWT | 60 | 49 | 0.189 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500L普通 | 54.2 | 42.7 | 71.5*53.5*67 | 0.256 | 24.5 | 123.5*59*10 | 0.072 |
| 1500L-DS | 57 | 45.5 | 0.256 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500LEST/EWT | 66.5 | 55 | 0.256 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500LAST/AWT | 63.5 | 52 | 0.256 | 24.5 | 123.5*59*10 | 0.072 |
