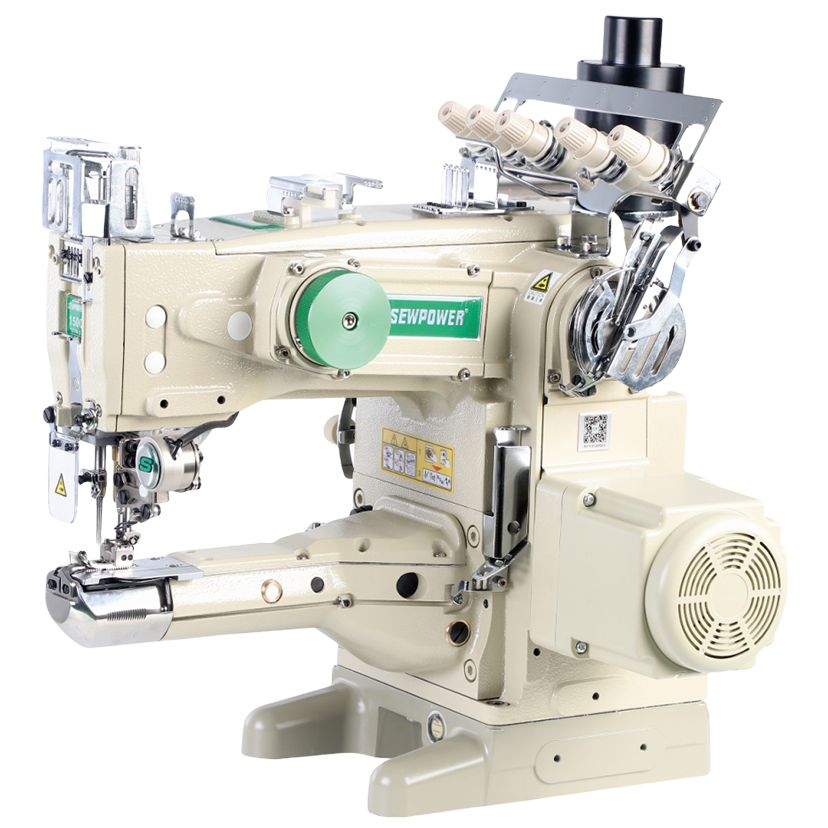

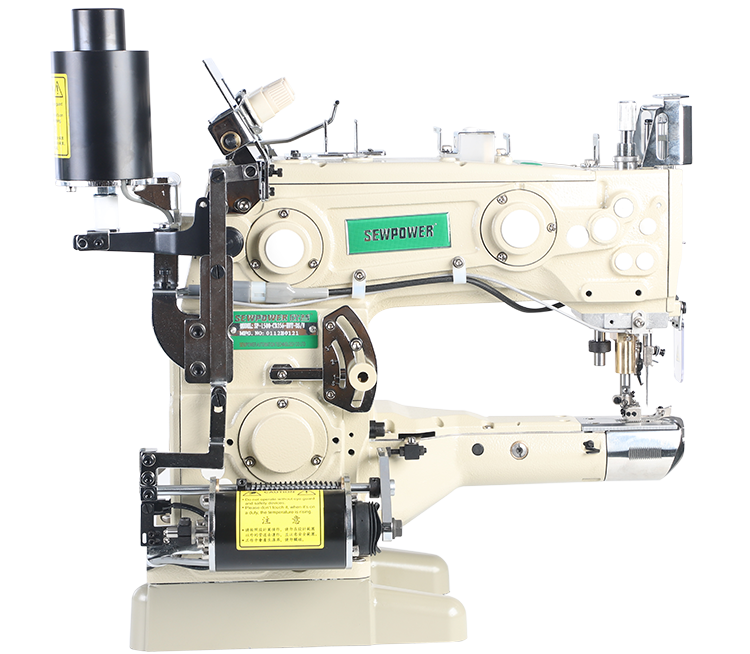

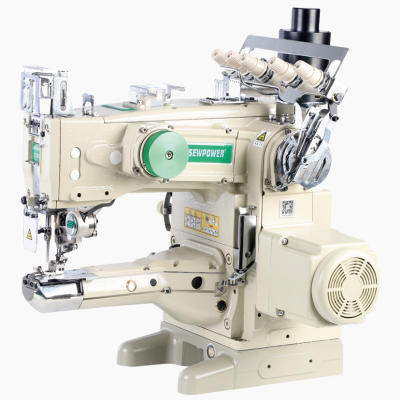

Auto trimming vertical cylinder bed interlock sewing machine
自动剪线纵筒式绷缝机
1.No oil, no worry:
Oil stain is one of the biggest headaches for all manufactures. VT,Sewpower's origin the expert of preventing oil leakage, supplies you perfect products without oil stain.
2.Applicable for any thick/thin material:
You can get uniform, beautiful stitches even on pantyhose, the waist of winter sports with cord piped procedure.
3.Perfect seaming & stitching:
Long time continuous sewing test proved, can run smoothly without any needle breakage/skip stitching, offering you perfect seaming & stitching.
4.Abundant optional guides:
One machine is applicable for various sewing operations: hemming,covering, binding..., a real interlock all-rounder.
5.Absolute low noise / little vibration, durable machine:
Unique drive communication system, the noise and vibration to a minimum. Thus, the operation is greatly reduced due to fatigue caused by the operation of instability and accidents, improve work efficiency, more guarantee products are uniform! At the same time, lower noise /small vibration proves that the machine is less weary and naturally moredurable durable!
This machine is suitable for some special process in garment making,interlocking and cover sewing of small caliber parts, such as collar, sleeve,elastic lace of all kinds of garment, specially for knitting ware, sports ware,swimming suit and all kinds of leisure clothes, jacket etc.applicable to sewing of cotton wool, cloth and knitting wear for garment factory.
On site video

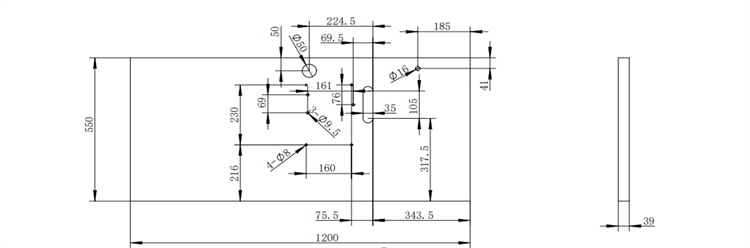

Ordinary tabletop

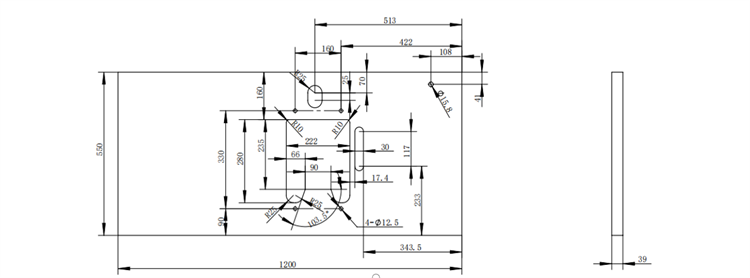

Sunken tabletop
| Maximum Sewing Speed | Up to 5500 revolutions per minute |
| Motor | Direct drive |
| Differential Feed Ratio | 1：0.8 - 1：2 |
| Needle Spacing | 5.6MM，6.4MM |
| Stitch length | 1.2MM-4MM |
| Foot Lift Height | 9MM |
| Tube length | 260MM |
| Scope of Application | Suitable for sewing sleeves, pants legs, etc |
| Air Thread Trimming | YES |
| Pneumatic Presser Foot Lift | YES |
| With Thread Wiper | YES |
| Model | Gross weight/kg | Net weight/kg | Carton dimensions/CM | Volume/CBM | Platform/kg | Platform size | Platform volume/CBM |
| 1500普通 | 51 | 40 | 58*50*65 | 0.189 | 26 | 123.5*59*10 | 0.072 |
| 1500-DS | 54.2 | 40.2 | 0.189 | 26 | 123.5*59*10 | 0.072 | |
| 1500EST/EWT | 63.5 | 52.5 | 0.189 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500AST/AWT | 60 | 49 | 0.189 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500L普通 | 54.2 | 42.7 | 71.5*53.5*67 | 0.256 | 24.5 | 123.5*59*10 | 0.072 |
| 1500L-DS | 57 | 45.5 | 0.256 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500LEST/EWT | 66.5 | 55 | 0.256 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500LAST/AWT | 63.5 | 52 | 0.256 | 24.5 | 123.5*59*10 | 0.072 |
