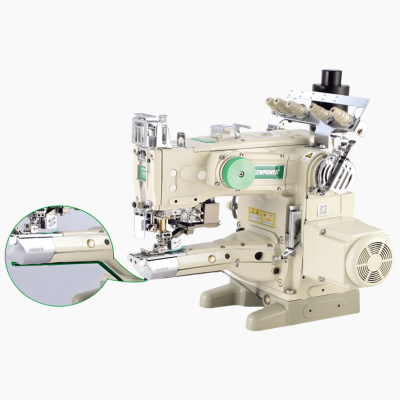

Vertical cylinder bed interlock sewing machine with auto tape cutter
通肩压条自动切条纵筒式绷缝机
Double crochet structure
Stitch 11.0mm (SEWPOWER unique, the industry's first, patented products)
ATK device
Pneumatic ATK tape cutter device greatly improve work efficiency, saves laborcosts and facilitates operation
Absolute low noise / little vibration, durable machine
Unique drive communication system, the noise and vibration to a minimum.Thus, the operation is greatly reduced due to fatigue caused by the operation of instability and accidents, improve work efficiency, more guarantee products are uniform! At the same time, lower noise / small vibration proves that the machine is less weary and naturally more durable durable!
Internal sticker
Collar edging
Upper back collar
This machine is suitable for T-shirt "sticker" sports trousers andjeans stickers.
Introduction to different needle positions of automatic shoulder pressure strip cutting longitudinal cylinder overlock sewing machine
264 strip cutting tape (bottom over tape)
Ordinary tabletop
Sunken tabletop
| Maximum Sewing Speed | Up to 5500 revolutions per minute |
| Motor | Direct drive |
| Differential Feed Ratio | 1：0.8 - 1：2 |
| Crochet | Double hook needle |
| Needle Spacing | 6.4MM |
| Stitch length | 1.2MM-4MM |
| Tube length | 260MM |
| Foot Lift Height | 9MM |
| Scope of Application | Suitable for strip sewing and shoulder to shoulder pressure strip |
| Equipped with pneumatic cutting blade and belt cutting device | YES |
| Model | Gross weight/kg | Net weight/kg | Carton dimensions/CM | Volume/CBM | Platform/kg | Platform size | Platform volume/CBM |
| 1500普通 | 51 | 40 | 58*50*65 | 0.189 | 26 | 123.5*59*10 | 0.072 |
| 1500-DS | 54.2 | 40.2 | 0.189 | 26 | 123.5*59*10 | 0.072 | |
| 1500EST/EWT | 63.5 | 52.5 | 0.189 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500AST/AWT | 60 | 49 | 0.189 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500L普通 | 54.2 | 42.7 | 71.5*53.5*67 | 0.256 | 24.5 | 123.5*59*10 | 0.072 |
| 1500L-DS | 57 | 45.5 | 0.256 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500LEST/EWT | 66.5 | 55 | 0.256 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500LAST/AWT | 63.5 | 52 | 0.256 | 24.5 | 123.5*59*10 | 0.072 |
