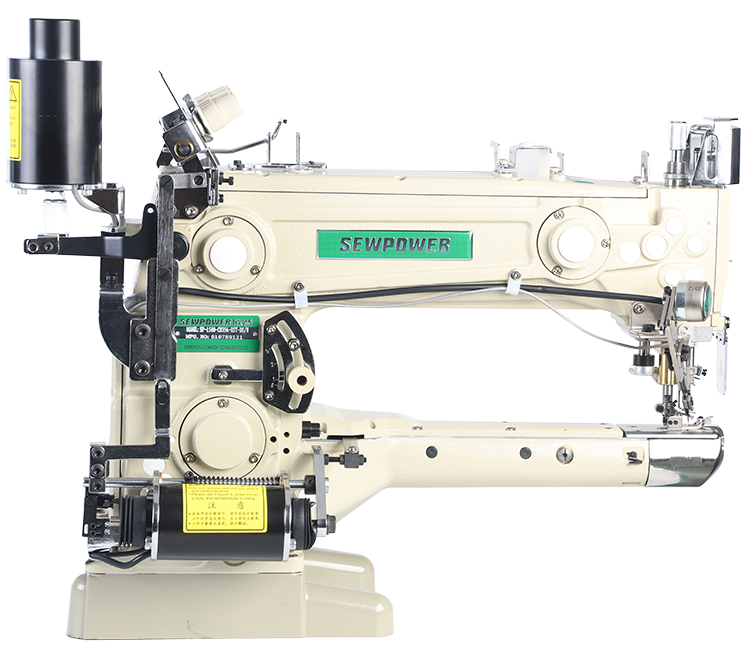

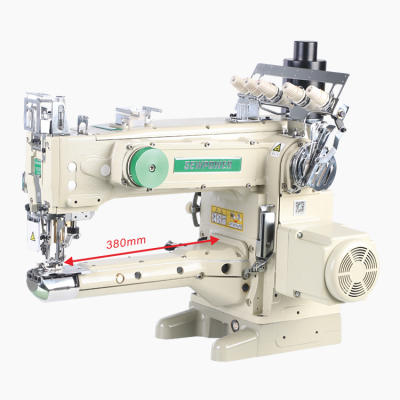

SP-1500-L/380
High speed long arm cylinder bed interlock sewing machine with automatic trimmer
加长型自动剪线纵筒式绷缝机
Product video
Product Features
Scope of Application
This machine is suitable for some special process in garment making, interlocking and cover sewing of small caliber parts, such as collar, sleeve, elastic lace of all kinds of garment, specially for knitting ware, sports ware, swimming suit and all kinds of leisure clothes, jacket etc.applicable to sewing of cotton wool, cloth and knitting wear for garment factory.
Operation video

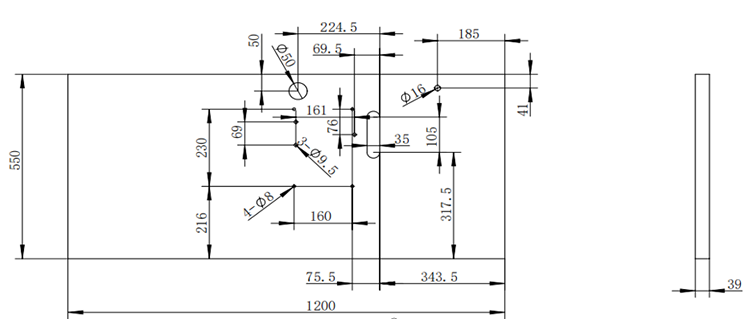

Platen
普通台板

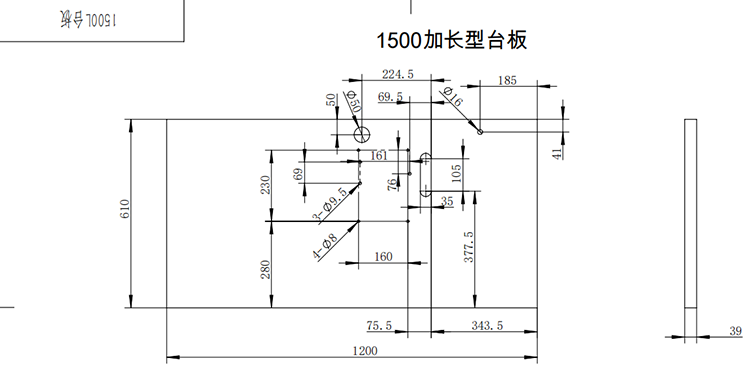

加长型台板
Parameter
|
|  |
|
|
|
|
|
|
|
|
|
|
|
| SP-1500L-240 | Bottom hem seam, roll collar, compression joint, seam | UY128GAS 9-16# | 2(3) | 4(5) | 4.0 | 1.2-4 | 1:0.8-1:2 | ☆ | 31.5 | 5000 | 9 | 430x284x360 | 42/47 |
| SP-1500L-248 | Bottom hem seam, roll collar, compression joint, seam | UY128GAS 9-16# | 2(3) | 4(5) | 4.8 | 1.2-4 | 1:0.8-1:2 | ☆ | 31.5 | 5000 | 9 | 430x284x360 | 42/47 |
| SP-1500L-264 | Bottom hem seam, roll collar, compression joint, seam,note | MY1014B 9-16# | 2(3) | 4 | 6.4 | 1.2-4 | 1:0.8-1:2 | ☆ | 31.5 | 5000 | 9 | 430x284x360 | 42/47 |
| SP-1500L-356 | Bottom hem seam, roll collar, compression joint, seam | UY128GAS 9-16# | 2(3) | 4(5) | 5.6 | 1.2-4 | 1:0.8-1:2 | ☆ | 31.5 | 5000 | 9 | 430x284x360 | 42/47 |
| SP-1500L-464 | Bottom hem seam, roll collar, compression joint, seam | MY1014B 9-16# | 2(3) | 4(5) | 6.4 | 1.2-4 | 1:0.8-1:2 | ☆ | 31.5 | 5000 | 9 | 430x284x360 | 42/47 |
| SP-1500L-460 | Bottom hem seam, roll collar, compression joint, seam | MY1014B 9-16# | 2(3) | 4(5) | 6.0 | 1.2-4 | 1:0.8-1:2 | ☆ | 31.5 | 5000 | 9 | 430x284x360 | 42/47 |
Product packaging
| Model | Gross weight/kg | Net weight/kg | Carton dimensions/CM | Volume/CBM | Platform/kg | Platform size | Platform volume/CBM |
| 1500普通 | 51 | 40 | 58*50*65 | 0.189 | 26 | 123.5*59*10 | 0.072 |
| 1500-DS | 54.2 | 40.2 | 0.189 | 26 | 123.5*59*10 | 0.072 | |
| 1500EST/EWT | 63.5 | 52.5 | 0.189 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500AST/AWT | 60 | 49 | 0.189 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500L普通 | 54.2 | 42.7 | 71.5*53.5*67 | 0.256 | 24.5 | 123.5*59*10 | 0.072 |
| 1500L-DS | 57 | 45.5 | 0.256 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500LEST/EWT | 66.5 | 55 | 0.256 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500LAST/AWT | 63.5 | 52 | 0.256 | 24.5 | 123.5*59*10 | 0.072 |
