High speed long arm cylinder bed interock sewing machine with automatic trimmer
加长型自动剪线纵筒式绷缝机
Integrated needle plate
The shape of the needle plate is reduced, making it easier to sew small-diameter tubular gamments
Integrated disc structure (Patented design)
One-piece cutter head, solid structure, movable knife and fixed knife can be adjusted synchronously, more stable thread trimming and clamping
Old model:
The fixed knife bracket is fixed with a single screw, but the accuracy is not high; The movable knife and the fixed knife are fixed separately, making it inconvenient to adjust;

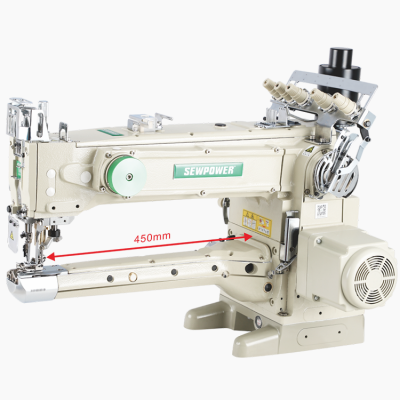

Increase the operating space to 450mm
The sewing space is enlarged, making it more convenient to sew elongated tubular garments
This machine is suitable for some special process in garment making, interlocking and cover sewing of small caliber parts, such as collar, sleeve, elastic lace of all kinds of garment, specially for knitting ware, sports ware, swimming suit and all kinds of leisure clothes, jacket etc.applicable to sewing of cotton wool, cloth and knitting wear for garment factory.
| Maximum Sewing Speed | Up to 5500 revolutions per minute |
| Motor | Direct drive |
| Differential Feed Ratio | 1：0.8-1：2 |
| Needle Spacing | 5.6MM，6.4MM |
| Stitch length | 1.2MM-4MM |
| Foot Lift Height | 9MM |
| Tube length | Lengthen，450MM |
| Scope of Application | Suitable for sewing sleeves, pants legs, etc |
| Air Thread Trimming | YES |
| Pneumatic Presser Foot Lift | YES |
| With Thread Wiper | YES |
| Model | Gross weight/kg | Net weight/kg | Carton dimensions/CM | Volume/CBM | Platform/kg | Platform size | Platform volume/CBM |
| 1500普通 | 51 | 40 | 58*50*65 | 0.189 | 26 | 123.5*59*10 | 0.072 |
| 1500-DS | 54.2 | 40.2 | 0.189 | 26 | 123.5*59*10 | 0.072 | |
| 1500EST/EWT | 63.5 | 52.5 | 0.189 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500AST/AWT | 60 | 49 | 0.189 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500L普通 | 54.2 | 42.7 | 71.5*53.5*67 | 0.256 | 24.5 | 123.5*59*10 | 0.072 |
| 1500L-DS | 57 | 45.5 | 0.256 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500LEST/EWT | 66.5 | 55 | 0.256 | 24.5 | 123.5*59*10 | 0.072 | |
| 1500LAST/AWT | 63.5 | 52 | 0.256 | 24.5 | 123.5*59*10 | 0.072 |
