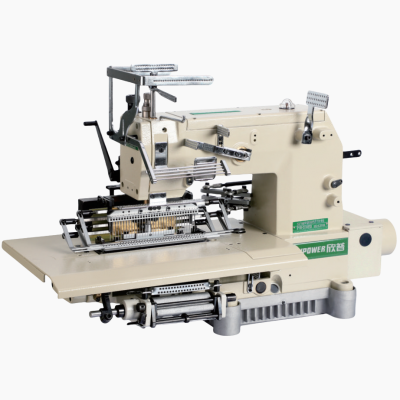

SP-008-33048PSSM-DSS
33 needles direct-drive decorative &smocking sewing machine
33针直驱装饰打缆车缝
Product video
Product Features
SP 008 series of multi-needle machine is diferent from general chain sewing machine in its adoption of leverstructure; with lever and wire, it forms a loop. Half-cylinder body design makes it convenient to sew loop-shapedclothes. With various needle gauges, the machine is able to be installed up to 33 needles within a scope of153.6mm.Pop-up slaff gauge structure makes it easy for threading
Operation video
Platen
Open tabletop
Ordinary tabletop
Sunken tabletop
Parameter
| Needles | 33 Built-in Stitches |
| Motor | 550W Direct-Drive Motor |
| Speed | Maximum Speed: 2,500 rpm |
| Needle Spacing | 4.8MM |
| Stitch Length | 1.8MM-4.6MM |
| Foot Lift Height | 8MM |
| Stitch Width | 153.6MM |
| Bobbin Thread | Bobbin-thread Shirring Elastic|Bobbin-less Shirring Elastic |
| 打揽 | Yes |
Product packaging
| Model | Gross weight/kg | Net weight/kg | Carton dimensions/CM | Volume/CBM | Platform/kg | Platform size | Platform volume/CBM |
| 008-12针DS/S | 55 | 75x39x65 | 0.19 | 25.8 | 156x56.6x10 | 0.071 | |
| 008-12针TY-DS/S | 60 | 0.19 | 25.8 | 125x56.5x10 | 0.071 | ||
| 008-12针AWT | 59.3 | 0.19 | 25.8 | 125x56.6x10 | 0.071 | ||
| 009-12针AWT | 65.7 | 0.19 | 25.8 | 125x56.6x10 | 0.071 | ||
| 008-37048P-DS/S | 87.2 | 50.5 | 木箱90x50x50 | 0.225 | 25.8 | 125x61x11 | 0.084 |
| 008-33048PQS-DS/S | 78.3 | 47.5 | 0.225 | 25.8 | 125x61x11 | 0.084 | |
| 008-33048PQ2-DS/S | 91.5 | 49 | 0.225 | 25.8 | 125x61x11 | 0.084 | |
| 008-33048PQ2-DS/S | 112 | 0.225 | 25.8 | 125x61x11 | 0.084 | ||
| 008-65048PQSM 含台板大木箱 | 212.7 | 木箱128x82x130 | 1.364 |
