SP-008-13064-32P-AWT-13T-DS/QS

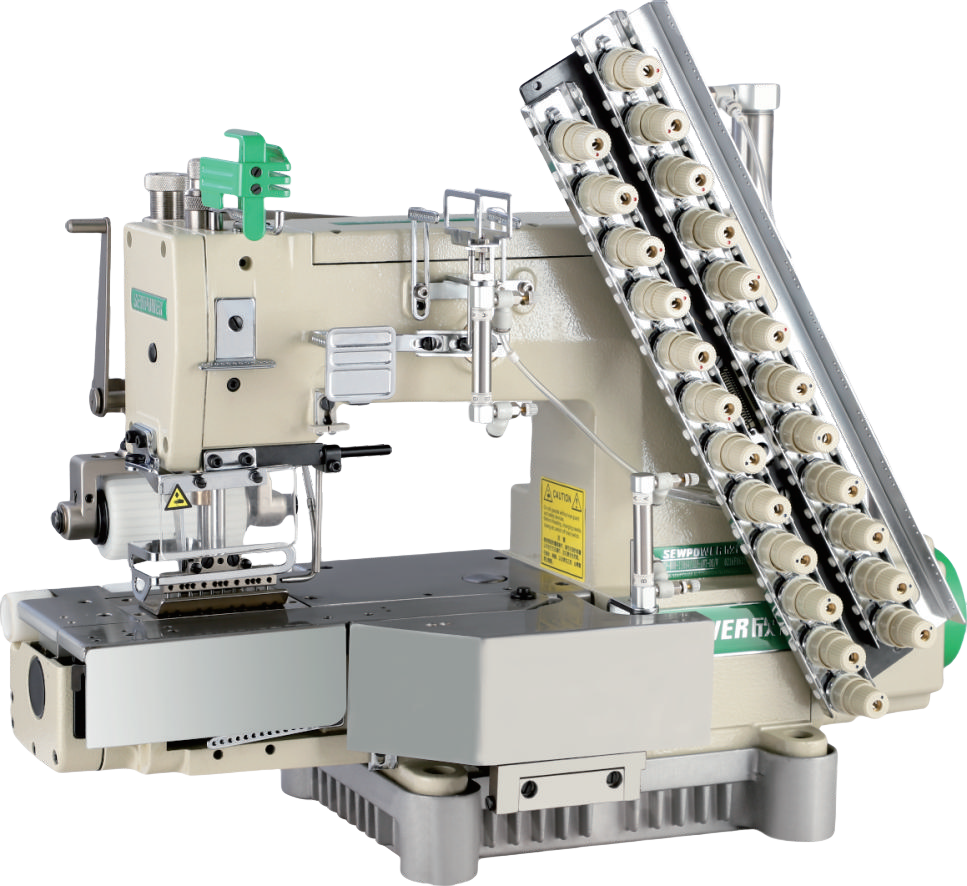

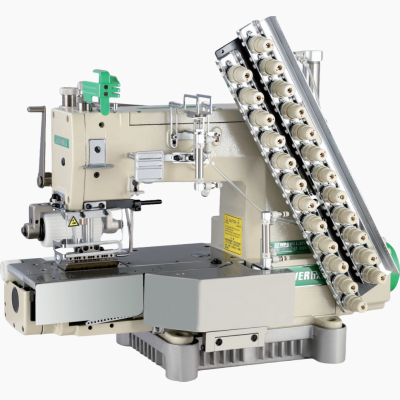

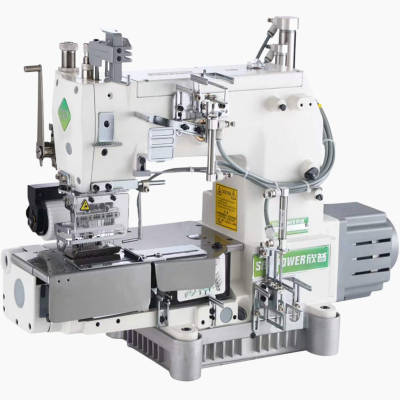

Multi-needle chain stitch circular-cylindersewing machine



Product video
Model Description


Product Features

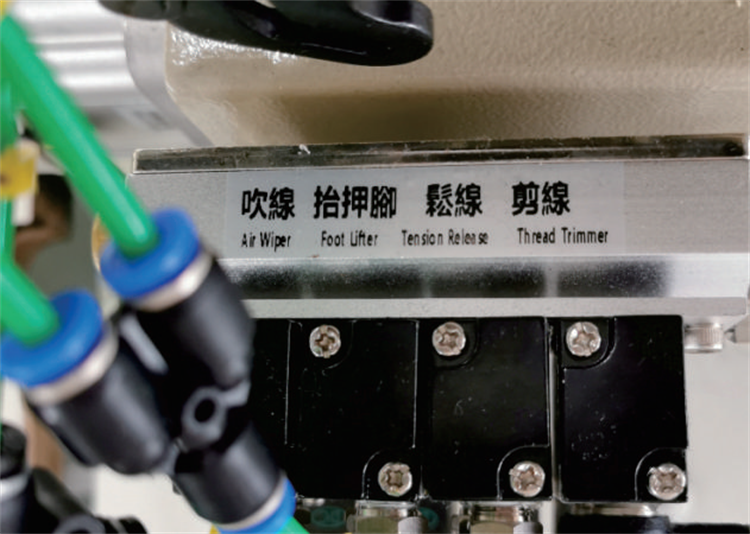

Four automatic

Real four automatic ( air wiper, foot lifter, tensionrelease,thread trimmer)separately operates, andall movements are done at one go

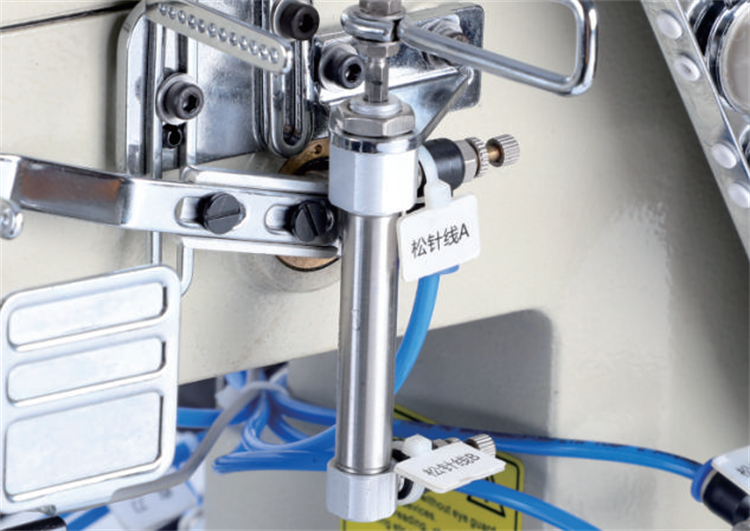

Wire up cylinder

Upper thread air cylinder "humanization design",considering customers demands, equips upper ofmachine head, does not take working space.

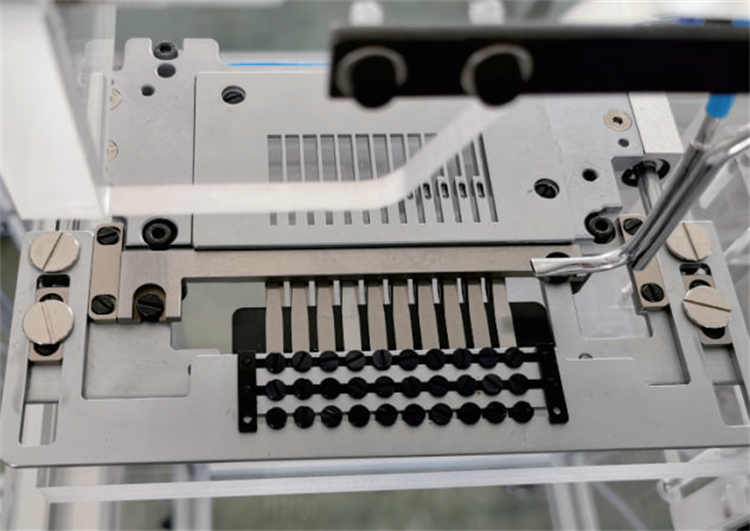

Cutterhead


1、Knife plate1. Double air cylinder work separalely.. knife plate stable

2、Knife plate made by special material and technique,sturdy,wear-resisting and not easily broken

3、 Knife plate gap junction perfectly, almost no space,smoothly without any sticking point

4、 Knife plate equips 10 knives, meet demands of all typesof gauges

5、Knife come from Taiwan, wear-resisting and sharptrimming thread cleariy


Scope of Application

去除裤子 logo.png



Pulling pants waist

Operation video

Three strongest

advantages

 Quick release

disc cutter

Silk wire cutting

Pleating

On site video

On site video

On site video












Platen


Open tabletop



Ordinary tabletop



Sunken tabletop

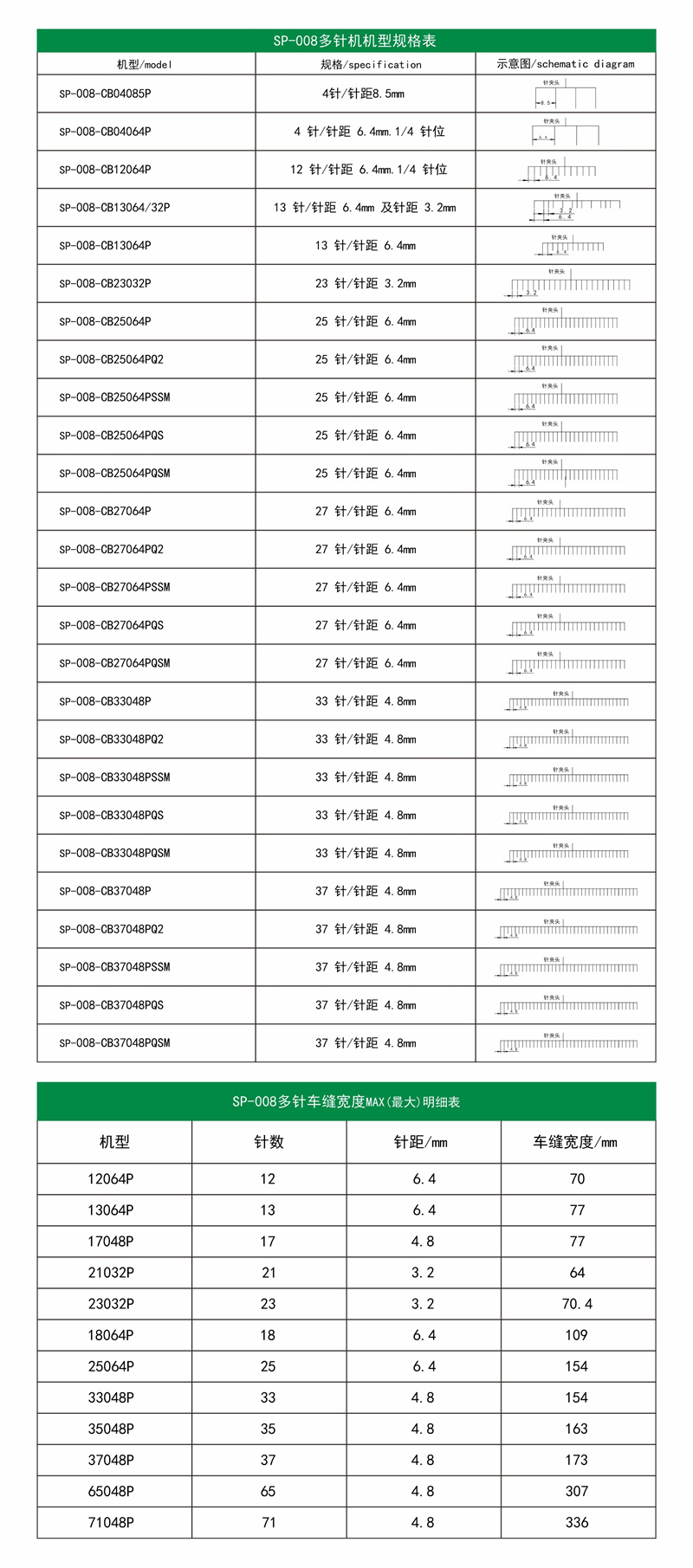

Parameter
Needles 13 Built-in Stitches
Motor 500W Direct-Drive Motor
Speed Maximum Speed: 3,500 rpm
Needle Positioning|Needle   Spacing3.2MM/6.4MM
Stitch Length1MM-7MM
Foot Lift Height8MM
Pneumatic Presser Foot LiftYes
Stitch Width57.6MM
With Thread WiperYes


Product packaging
ModelGross weight/kgNet weight/kgCarton dimensions/CMVolume/CBMPlatform /kgPlatform sizePlatform volume/CBM
008-12needle DS/S55
75x39x650.1925.8156x56.6x100.071
008-12needle TY-DS/S60
0.1925.8125x56.5x100.071
008-12needle AWT59.3
0.1925.8125x56.6x100.071
009-12needle AWT65.7
0.1925.8125x56.6x100.071
008-37048P-DS/S87.250.5wooden box90x50x500.22525.8125x61x110.084
008-33048PQS-DS/S78.347.50.22525.8125x61x110.084
008-33048PQ2-DS/S91.5490.22525.8125x61x110.084
008-33048PQ2-DS/S112
0.22525.8125x61x110.084
008-65048PQSM   Large wooden box with baseboard212.7
wooden box128x82x1301.364
