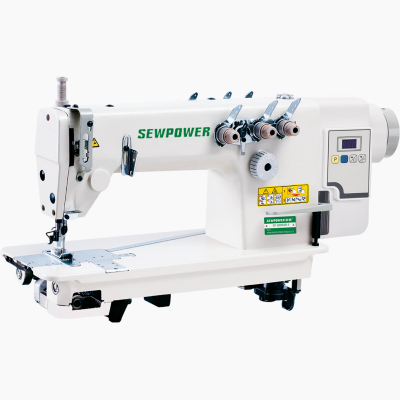

SP-20058D-1/2/3

Direct Drive High Speed Chain Stitch Sewing Machine Series
Product Features

The machine operalion space is large ,the direct drive servo device can make the sewing speed free to adjust, adopt neede bar to take up thread and looper to hook thread, form the three needle stitch ,the stitch is beautiful straight and elastic. This machine is suitable for different suture and the fabric of the sewing work , such as plain cloth, Khaki and denim fabric, etc. It is also equipped with a variety of sizes or needle products to choose, from silk to very thick cowboy materials ; built-in , extermal tugs , to meet different customers' demands.


Parameter
| Machine type | SP-20058D-1 | SP-20058D-2 | SP-20058D-2-PL | SP-20058D-3 (Model) | SP-20058D-3 (Inclined Type) | SP-20058D-3-PL |
| Machine needle | TVx7 | TVx7 | TVx7 | TVx7 | TVx7 | TVx7 |
| Foot lifter height | 5.5/10 | 5.5/10 | 5.5/10 | 5.5/10 | 5.5/10 | 5.5/10 |
Needle gauge | 0-4 | 0-4 | 0-4 | 0-4 | 0-4 | 0-4 |
| Number of stitches | 1 | 2 | 2 | 3 | 3 | 3 |
| Needle bar stoke | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 |
Thick fabric | ★ | ★ | ★ | ★ | ★ | ★ |
Medium fabrics | ★ | ★ | ★ | ★ | ★ | ★ |
| Thin fabrics | ★ | ★ | ★ | ★ | ★ | ★ |
| Max speed(rp.m) | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| Package size | 66.5x30x56 | 66.5x30x56 | 66.5x30x56 | 66.5x30x56 | 66.5x30x56 | 66.5x30x56 |
| Gross/net weight | 43/35 | 43/35 | 45/37 | 43/35 | 43/35 | 45/37 |
