Patented Thread Take-up Lever
Suitable for Both Thin and Thick Materials

Patented Thread Take-up Lever, Suitable for Both Thin and Thick Materials

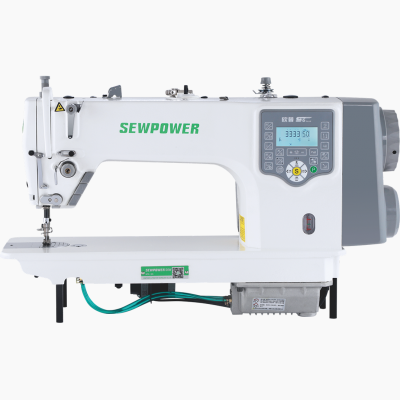

It adopts double independent stepping motor to drive the trimming and lifting foot, which is quieter and more stable. lt can be freely set to produce a variety of different stitches to achieve the effect of multi-purpose.The stitch pattern can be customized on the operation screen and can store 8 patterns. Adopting new motor design, low maintenance cost, convenient encoder replacement; scientific design, suitable from light to heavy fabrics; sealed oil pan, no oil and no care; electronic knee control, easy and smooth seam; large wind volume hand wheel, electric control box heat dissipation, super energy USB interface.


双步进电机,更安静平稳
Double stepper motor for quieter and smoother

双圆刀的新切线机构,有效减少对线头的处理工作(短线头、减少线头堆积现象)
Double round knives cutting mechanism, Effectively reducing process of dealing with the thread head (shorter thread head, less thread accumulating)

电子松线,自动调整面线张力
Electronic thread loose, automatic adjustment of surface tension

缝制多达9种不同线迹的花样缝
Sewing up to 9 different stitch patterns

电子夹线/LED灯、补针、点动倒缝
Electronic thread clamp / needle stitch compensation, LED lamp, and button reverse sewing combined in one part

电子膝控,轻松畅缝
Electronic knee control, easy to lift presser foot

步进电机控制剪线
Trimming by step motor

密封油盘,无油无虑
Closed oil pan design
| SP-S6 | SP-S6-H |
| DBx1 | DPX5 |
| 0-5 | 0-7 |
| 5.5-13 | 5.5-13 |
| ★ | ★ |
| ★ | ★ |
| ★ | ★ |
| ★ | ★ |
| ★ | / |
| / | ★ |
![]() | ★ | ★ |
| 5000 | 4500 |
| 665x280x540 | 665x280x540 |
| 45/39 | 45/39 |
