SP-P6TSD-514M24/S
直驱式超高速小嘴差动包缝机

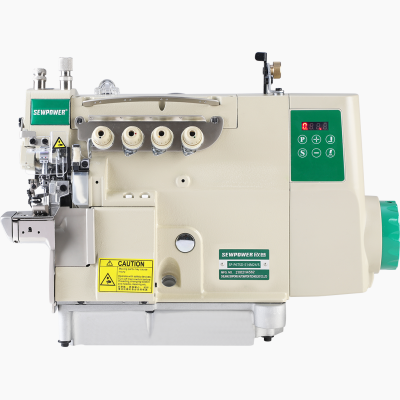

Direct-drive Super High Speed Ultra-small Cylinder Bed Top&Bottom Feeding Automatic Overlock Machine
Product Features
Scope of Application
该系列直驱超高速细嘴包缝机,适合各类T恤的袖口、童装袖口以及圆形小物的缝纫,适用面较广,能装各种辅助装置。
The Series direct-drive ultra-high speed slender mouth overlock sewing machine, suitable for all kinds of T-shirts, Children wear cuff and small circular fabric sewing, wide range of application, can hold all kinds of auxiliary device.
Parameter
| 机型Machine type | SP-P6TSD-514M24/S |
机针Machine needle | DCx27 |
| 适用面料Applicable fabric | 基本缝 |
| 针数Number of stitches | 2 |
| 线数Thread number | 4 |
| 抬压脚高度Foot lifter height | 8 |
| 线迹长度Stitch length | 0.6-3.8 |
| 线迹宽度Stitch width | 2x4 |
| 差动比Differential feed ratio | 1-1.4 |
最高转速Max speed | 5000 |
| 包装尺寸Package size | 470x330x480 |
毛重/净重Gross/net weight | 38.7/30.5 |
