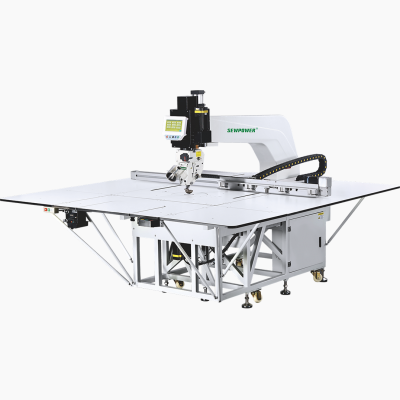

SP-N95RW

Anti bird nest rotary lifting head template machine
Product video
Product Features
Versatility Ad aptedldeal for thick materials, large-scale patterns, and obstacle-avoidance sewing processes.Engineered Mechanical Structure,Robust Control System

Before lifting up/down

After rising and falling
Scope of Application

Parameter
| Machine type | SP-N95130RW | SP-N95150RW | SP-N95160RW | SP-N95180RW | SP-N95200RW | SP-N95240RW |
| Sewing Range | 900X1300 | 900X1500 | 900X1600 | 900X1800 | 900X2000 | 900X2400 |
| Max Speed | 3800 | 3800 | 3800 | 3800 | 3800 | 3800 |
| Needle gauge | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 |
Machine needl | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# |
Hook | 2X Hook | 2X Hook | 2X Hook | 2X Hook | 2X Hook | 2X Hook |
Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Foot liting height | 20 | 20 | 20 | 20 | 20 | 20 |
Y feeding mode | Double Lead Screws | Double Lead Screws | Double Lead Screws | Double Lead Screws | Double Lead Screws | Double Lead Screws |
X feeding mode | Lead Screw & Timing Belt | Lead Screw & Timing Belt | Lead Screw & Timing Belt | Lead Screw & Timing Belt | Lead Screw & Timing Belt | Lead Screw & Timing Belt |
Table open size | 2400X2200 | 2400X3200 | 2400X3200 | 2400X3700 | 2400X4100 | 2400X4800 |
Package siz | 1960X1150X1740With 130W laser, length 2180mm | 1960X1150X1740With 130W laser, length 2180mm | 1960X1150X1740With 130W laser, length 2180mm | 1960X1150X1740With 130W laser, length 2180mm | 1960X1150X1740With 130W laser, length 2180mm | 1960X1150X1740With 130W laser, length 2180mm |
Gross/net weight | 636 | 657 | 663 | 680 | 705 | 735 |
