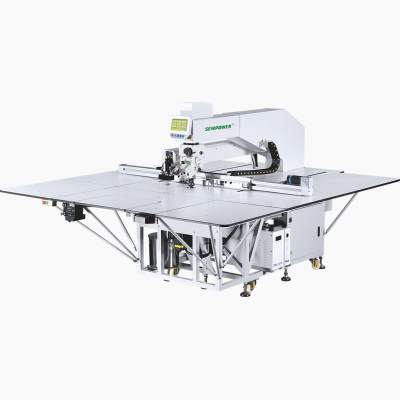

SP-N105W

无鸟巢旋转模板机

Anti Bird-Nest Template Machine

Product video
Product Features

更大的行程，满足不同的工艺需求

Bigger stroke, meet different processing requirements


未命名 -1_副本_副本.png

设计画笔可以轻松转换自动化工作所需的开模槽线迹缝纫线迹、画位线迹等工作轨迹。

Design Pen Easily converts and automates work paths for mold slotlines, stitching paths, and positioning lines.


未命名 -2_副本_副本.png

吸风：1500W风机功率，300X500吸风面积，适应各种面料工艺。

Suction:1500W motor power, 300x500mm suction area, adaptable to various fabricsand processes


Parameter
机型Machine typeSP-N105130WSP-N105150WSP-N105160WSP-N105180WSP-N105200WSP-N105240W
缝制范围Sewing Range1000X13001000X15001000X16001000X18001000X20001000X2400
最高转速Max Speed380038003800380038003800
针距Needle gauge0.1-200.1-200.1-200.1-200.1-200.1-20

机针

Machine needl

DPX5 7-24#DPX5 7-24#DPX5 7-24#DPX5 7-24#DPX5 7-24#DPX5 7-24#

旋梭Hook

2倍梭2倍梭2倍梭2倍梭2倍梭2倍梭

气压Pressure

0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa0.4-0.6Mpa

抬压脚高度
Foot liting height

202020202020

Y送料方式
Y feeding mode

同步带同步带同步带同步带同步带同步带

X送料方式
X feeding mode

同步带同步带同步带同步带同步带同步带

台板展开尺寸
Table open size

2540X22002540X32002540X37002540X37002540X41002540X4800

包装尺寸

Package siz

1960X1150X1740加130W激光长2180

1960X1150X1740加130W激光长21801960X1150X1740加130W激光长21801960X1150X1740加130W激光长21801960X1150X1740加130W激光长21801960X1150X1740加130W激光长2180

毛重/净争重
Gross/net weight

493514521537562592
