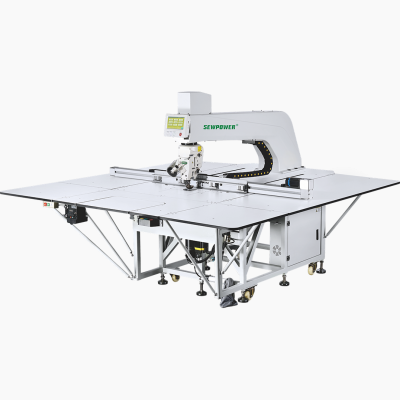

SP-N95130W

Anti Bird-Nest Template Machine
Product video
Product Features
Ultra-High Speed Template Machine, Faster Speed, Reduced Vibration, Quieter Operation, Wireless Communication Ready includes Wi-fi router for remote software upgrades, pattern transfers, and parameter settings.Jotional loT Customization Enables wired or wireless remote data exchange with production management systems.Direct Pattern lmport & Editing via Touchscreen Streamlines desian workflow.

360 degree rotary sewing

Laser cutting device (optional)

Integrated casting large base

Integrated casting machine arm
Operation video
Parameter
| Machine type | SP-N95130W | SP-N95150W | SP-N95160W | SP-N95180W | SP-N95200W | SP-N95240W |
| Sewing Range | 900X1300 | 900X1500 | 900X1600 | 900X1800 | 900X2000 | 900X2400 |
| Max Speed | 3800 | 3800 | 3800 | 3800 | 3800 | 3800 |
| Needle gauge | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 | 0.1-20 |
Machine needl | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# | DPX5 7-24# |
Hook | 2hook | 2hook | 2hook | 2hook | 2hook | 2hook |
Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Foot liting height | 20 | 20 | 20 | 20 | 20 | 20 |
Y feeding mode | Single Lead Screw | Single Lead Screw | Single Lead Screw | Single Lead Screw | Single Lead Screw | Single Lead Screw |
X feeding mode | Lead Screw & Timing Belt | Lead Screw & Timing Belt | Lead Screw & Timing Belt | Lead Screw & Timing Belt | Lead Screw & Timing Belt | Lead Screw & Timing Belt |
Table open size | 2400X2200 | 2400X3200 | 2400X3200 | 2400X3700 | 2400X4100 | 2400X4800 |
Package size | 1960X1150X1740With130WLaser Line Length2180 | 1960X1150X1740With130WLaser Line Length2180 | 1960X1150X1740With130WLaser Line Length2180 | 1960X1150X1740With130WLaser Line Length2180 | 1960X1150X1740With130WLaser Line Length2180 | 1960X1150X1740With130WLaser Line Length2180 |
Gross/net weight | 575 | 596 | 602 | 619 | 644 | 673 |
